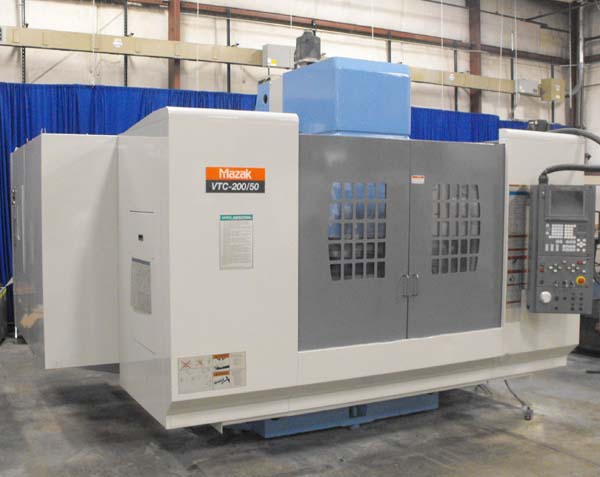

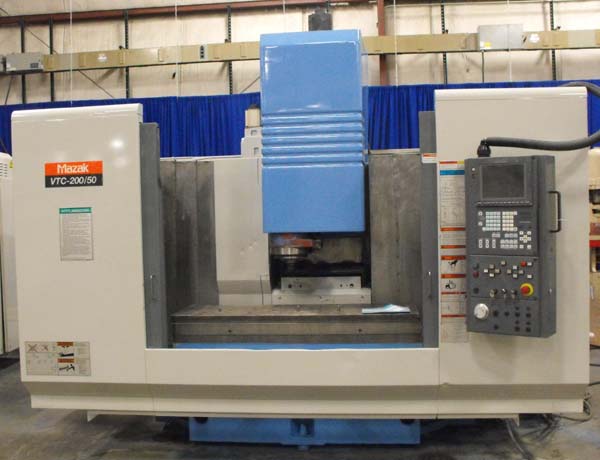

MAZAK
VTC-200/50 CNC VERTICAL MACHINING CENTER
MODEL
VTC-200, New 2001
EQUIPPED
WITH:
Mazatrol 640 Fusion-PC CNC
Control
24-Position Automatic Tool
Changer
Inverter Chip Conveyor
Thru Coolant Spindle
Pre-Wired for 4th Axis
Total Enclosed Cover
SPECIFICATIONS:
X-Axis
Travel 44.0"
Y-Axis
Travel 20.0"
Z-Axis
Travel 23.0"
Table
Size 57" x 20"
Max Weight on
Table 1,778 lBS
Spindle
Speeds 6,000 RPM
Spindle
Taper Cat 50
Spindle
Motor 20 HP
Rapid Traverse (X,Y,Z)
1,1811 IPM
Positioning
Accuracy +/- 0.0002"
Repeatability +/- 0.00006"
Approx. Machine
Weight 23,000 LBS
