Mazak Integrex 100 SY 5 Axis CNC Lathe with Live Tooling and Sub-Spindle

New 2002



EQUIPPED WITH

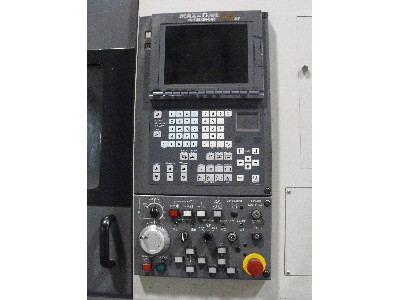

Fusion 640 MT

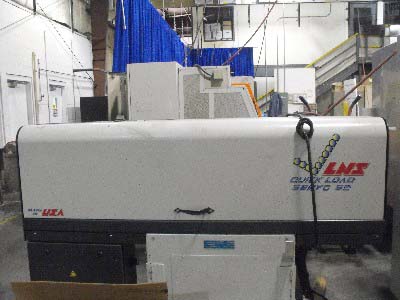

LNS Quick Load Bar Feeder

Chip Conveyor

40 Tool Magazine



STANDARD SPECIFICATIONS

Chuck Diameter (Main & Sub)                 6"

Max. Swing                                           18.5"

Max. Swing Over Carriage                       11.42"

Max. Cutting Diameter (Chucking)           18.5"

Max. Cutting Length                               29.72"

MAIN SPINDLE SPECIFICATIONS

Spindle Nose                                         A2-5

Spindle Bore                                          2.4"

Max. Bar Diameter                                 1.65" / 2" Option

Spindle Speed Ranges                           6,000 RPM

Spindle Index (Programmable)                 0.001 Degree

Spindle Horsepower                               10 HP

SUB SPINDLE SPECIFICATIONS

Sub-Spindle Nose                                  A2-5

Sub-Spindle Bore                                   2.04"

Sub-Spindle Max. Bar Work                    1.65"

Sub-Spindle Speed                                6,000 RPM

Sub-Spindle Index                                  0.001 Degree

Sub-Spindle Horsepower             10 HP

Tool Magazine                                       40 ATC

X Axis Travel                                          14.17"

Y Axis Travel                                         +/- 2.36"

B Axis Travel                                         225 Degree / 0.001 Deg. Increments

Z Axis Travel                                          30.87"

Rapid Traverse (X, Y, Z)              1181 IPM / 1024 IPM / 1299 IPM

Floor Space                                           122" x 81.9" x 91.3"

Machine Weight                                     10,803 LBS
