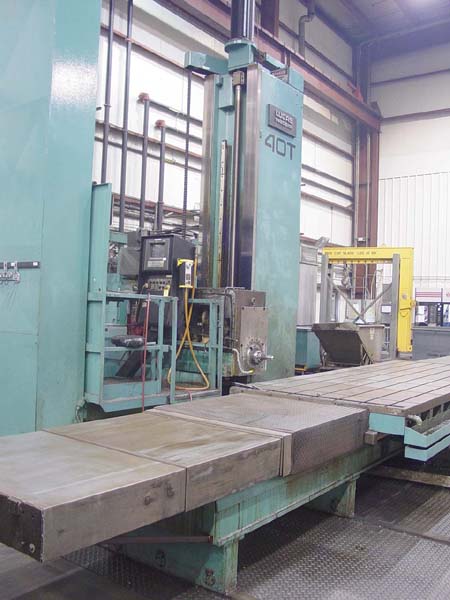

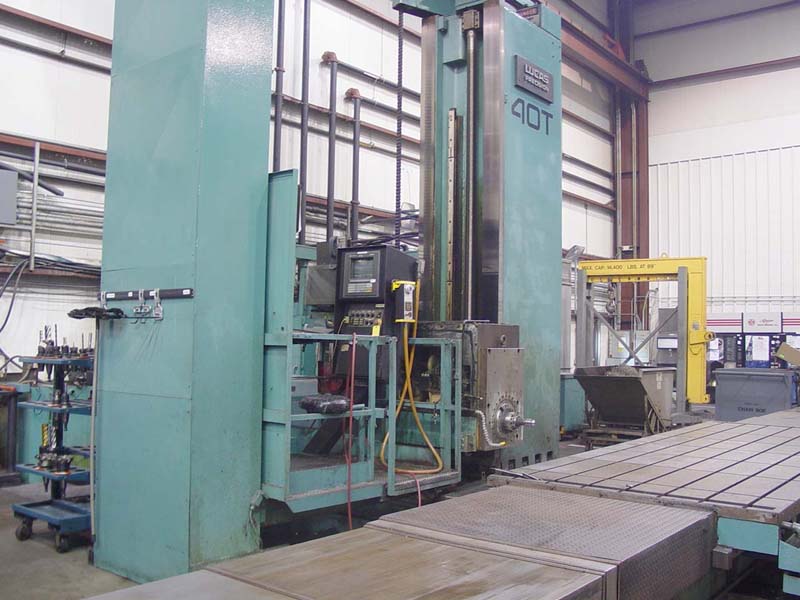

6" LUCAS TABLE TYPE HORIZONTAL BORING MILL
S/N 40T-0114, Model 40T-126, New 1974 Retrofit 1995

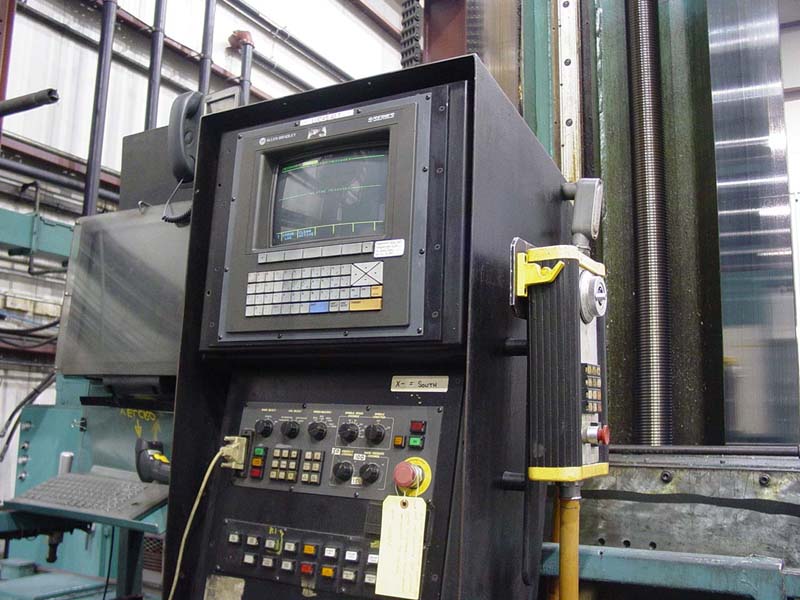

Allen Bradley Series 9 CNC Pendant Control, Full 4 Axis Programming,

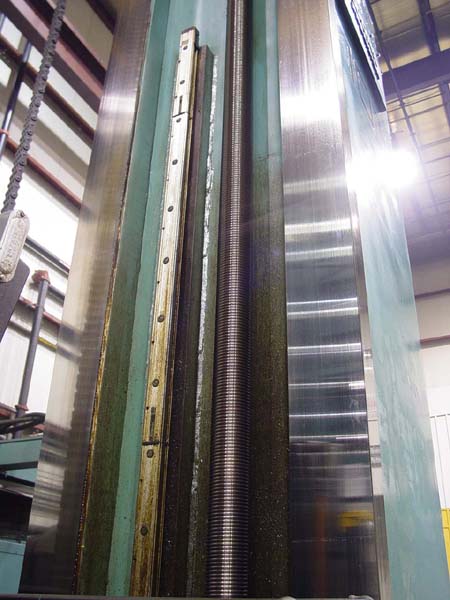

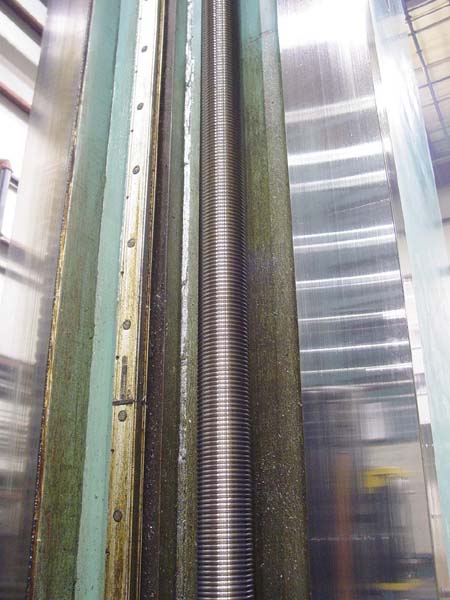

Outrigger Runway Supports, Updated Servos and Drives, Hardened Ways,

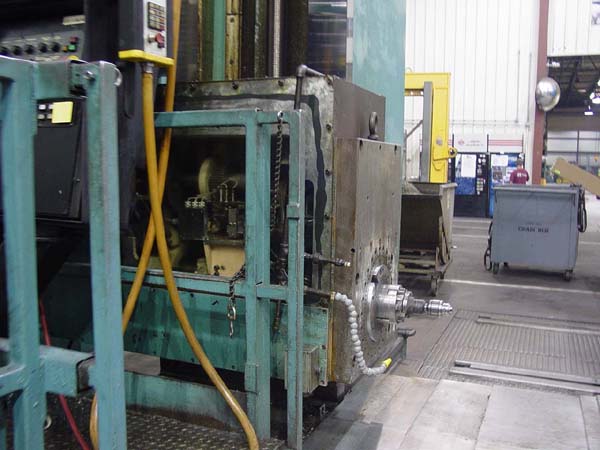

90 Degree Head Attachment, Extended Spindle Support Attachment,
Inch/Metric Programming, Mist/Flood Coolant.
CATALOG SPECIFICATIONS:
Spindle Diameter .................................. 6"

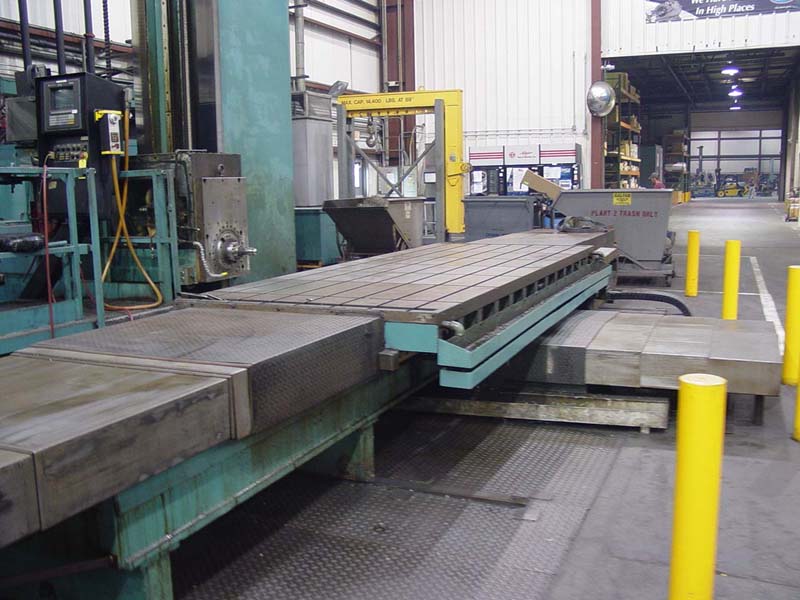

Table Size................................................ 60" x 158"
Saddle Travel (W-Axis) ............................ 72"
Table Cross Travel (X-Axis) ....................... 144"
Spindle-Head Vertical Travel (Y-Axis) ............. 120"
Quill Travel (Z-Axis) ............................ 48"
Table Work Weight Capacity ........................ 60,000 lbs Max.
Spindle Taper ..................................... #50 ASA
Spindle Speed, Range ........................ 5.6 to 1120 RPM
Motor, Spindle Horsepower ......................... 50
Electrics ......................................... 220/440/3/60
Overall Dimensions, L x D ......................... 327" x 385"
Overall Height .................................... 264"
Weight, Approximately ............................. 85,000 Lbs.
Condition: Excellent. In Plant Under Power and Ready for Demo !
