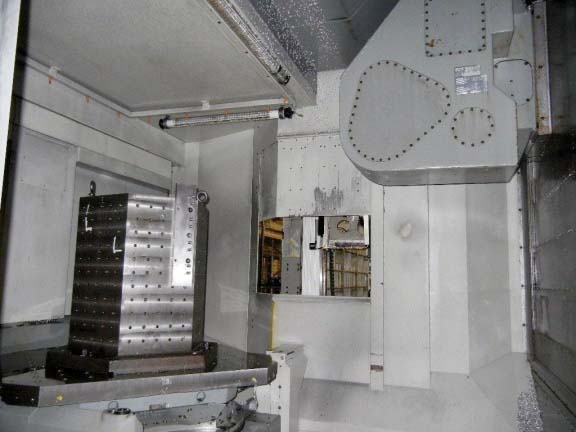

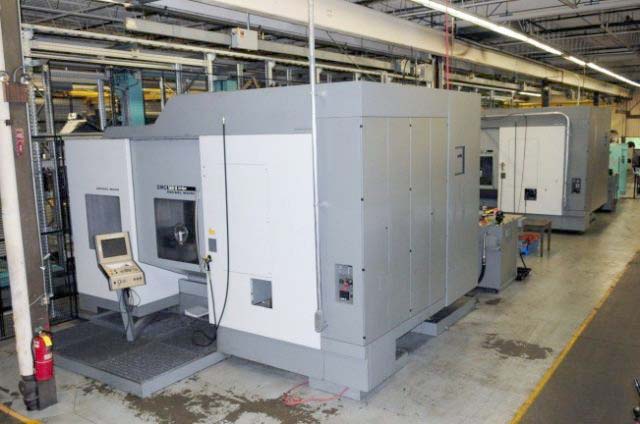

DMG DMC-160U 5-Axis Machining Cell with 2 Machines

                  and 34-Pallet Fasterms Changer System

                          New 2003, Stock# K13586

          EQUIPPED WITH:

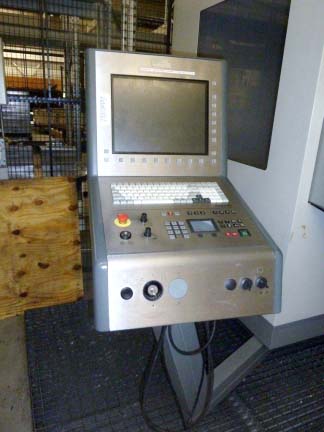

          Heidenhain Millplus iT 5-Axis 3D Contouring CNC Control

          240-Position Automatic Tool Changer

          Rotating Clear-View Window

          Through Spindle Coolant

          Part Probe

          Laser Measuring System

          Hand Held Control Pendant

          Chip Conveyor

          EACH MACHINE EQUIPPED AS FOLLOWS:

          X-Axis Travel ......................... 63"

          Y-Axis Travel ......................... 49.2"

          Z-Axis Travel ......................... 39.4"

          Spindle Taper ......................... CAT #50

          Pallet Size ........................... 49.2" x 39.4"

          Pallet Weight Capacity ................ 6600 Lbs.

          C-Axis Pallet Rotation ............... .001 Degree

          A-Axis Spindle Swivel Range ........... +90/-30 Degrees

          Spindle Drive Motor ................... 47 HP

          Spindle Speed Range ................... 10,000 RPM

          Tool Storage .......................... 240 ATC

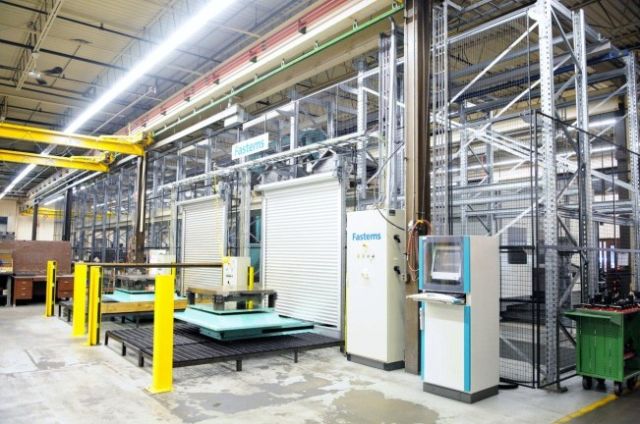

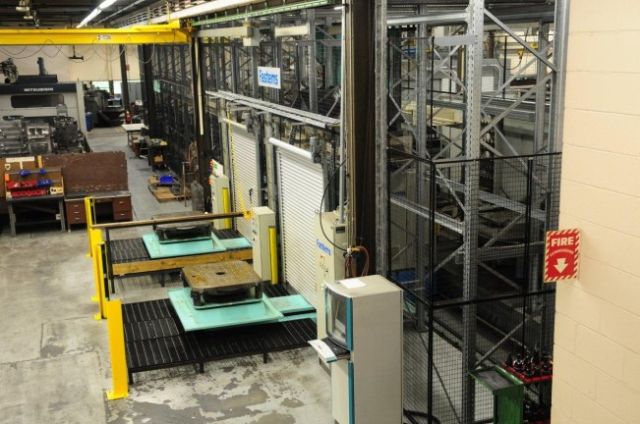

          FASTEMS Model MLS-HD 2-Sided, 2-Level Pallet System

          Twin Programmable Loading Stations

          34-Pallet Placement Stations

          (18) 49.2" x 39.4" Pallets

          9900 Lb. Weight Capacity (Pallet, Fixture, & Work Piece)

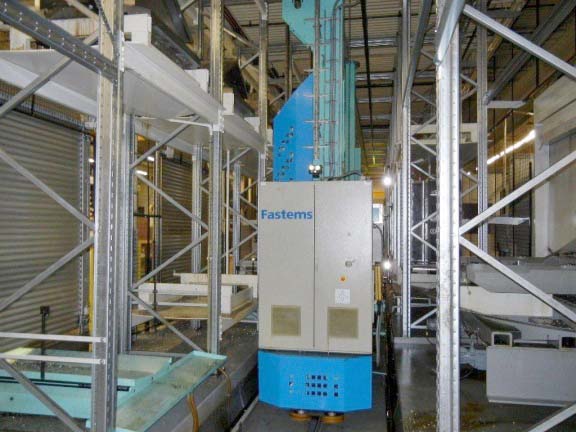

          5335 Lb. Robotic Crane Loading Capacity

          Windows-Based Programmable Controls

          Upgradeable for Future Expansion
