MAZAK VTC-20B CNC VERTICAL MACHINING CENTER
                          New 1998, Stock# K13567



EQUIPPED WITH:



Mazatrol M-Plus CNC Control, Fast Menu Driven (Conversational) Control
with Self Diagnostics, Back Ground Tool Path Check, Interactive Graphic
Programming, 24 Station Tool Changer, RS-232 Port, 7,000 RPM Spindle
Chip Conveyor and Coolant System.



CATALOGUE SPECIFICATIONS:

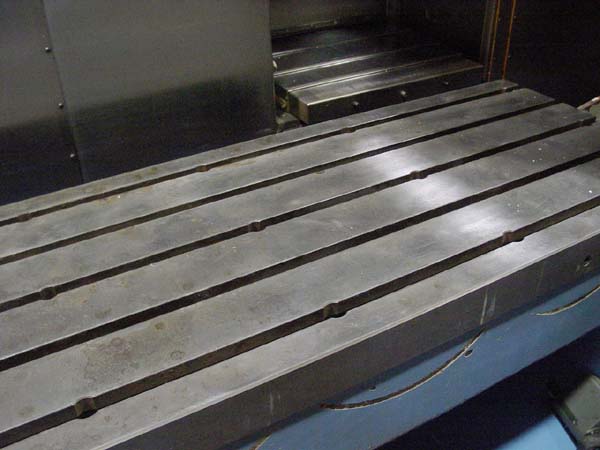

Table Working Surface................................. 57.5" x 20"
Longitudinal Travel (X-Axis).......................... 44"
Cross Travel (Y-Axis)................................. 20"
Vertical Travel (Z-Axis).............................. 20"
Feed Rates, X & Y Axes................................ 0 to 787 IPM
Feed Rate, Z-Axis..................................... 0 to 590 IPM
Tool Storage Capacity................................. 24
Spindle Horsepower.................................... 15 HP
Spindle Speeds Range.................................. 60-7000 RPM
Spindle Taper......................................... #40 CAT (V-Flg)
Approximate Machine Dimensions........................ 118" x 102"
Approximate Machine Height............................ 106"
Approximate Machine Weight............................ 12,000 LBS



CONDITION: Appears to be in Very Good Condition !!!
