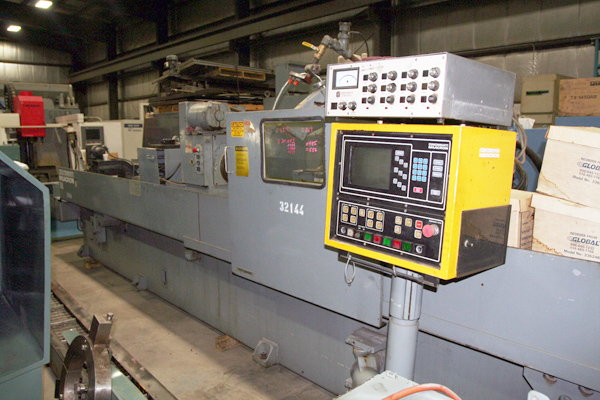

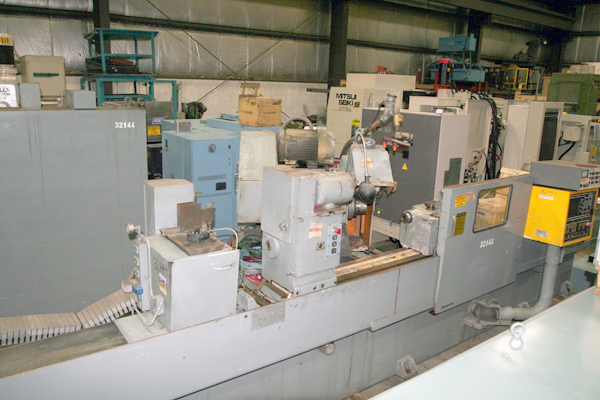

CINCINNATI 480, 14" X 100", ACCRAMATIC 700G CONTROL, 30 X 6 WHEEL, 25 HP, FILTRATION/COOLANT SYSTEM, SWIVEL TABLE, 1984,


EQUIPPED WITH:

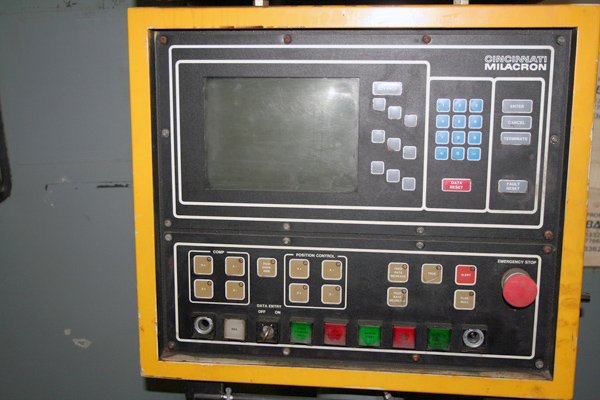

ACCRAMATIC 700 CNC CONTROL
BARNES COOLANT SYSTEM WITH FIBER AND MAGNETIC SEPERATION
LARGE AMOUNT OF MANUALS AND PRINTS

GENERAL SPECIFICATIONS:
SWING..............................................................14" (356 MM)
MAX. WORKPIECE LENGTH.........................100" (2540 MM)
MAX. GRINDING WHEEL DIAMETER..........30" (762 MM)
WHEEL WIDTHS..............................................1" - 6" (25.4-152.4 MM)
WHEEL MOUNTING HOLE............................12" (304.8 MM)
GRINDING WHEEL SURFACE SPEED...........8500 FT/MIN (43.18 M/S)
GRINDING WHEEL SPINDLE SPEED............1082 RPM WITH NEW WHEEL

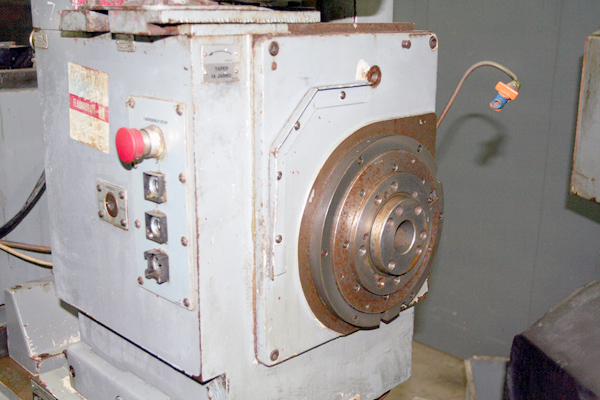

HEADSTOCK TYPE.........................................LIVE AND DEAD SPINDLE COMBINATION
HEADSTOCK SPEED RANGE........................10 - 550 RPM
  SHEAVE RATIO 3 TO 1..................................10-90 RPM (6-14" WORKPIECE)
  SHEAVE RATIO 10 TO1................................ 30-270 RPM (2-7" WORKPIECE)
  SHEAVE RATIO 5 TO 1..................................60-550 RPM (1 - 4" WORKPIECE)
HEADSTOCK MOTOR................................... 3 HP
HEADSTOCK TAPER......................................14 JARNO
