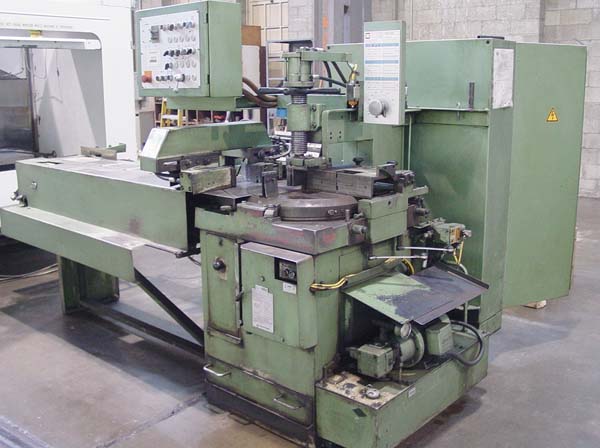

15-3/4" KALTENBACH FULLY-AUTOMATIC CIRCULAR COLD SAW
                   Model KKS-400A, New 1984, S/N 104435
                               Stock# K13547



EQUIPPED WITH:

Up-Acting Blade Swivels 180 Degrees for Mitre Cuts, Automatic Workpiece
Clamping, Power Length Setting and Readout, Automatic Material Feed,
Feed and Speed Selector Control, 8" x 72" Power Infeed Table,

12" x 180" Power Roller  Conveyor, Automatic Blade Retraction,

15 Extra Blades, Coolant System.

CATALOGUE SPECIFICATIONS:

Capacity Rounds..................................... 5-1/4"
Capacity Squares.................................... 4-1/2"
Capacity I Beams.................................... 8" x 4"
Capacity Rectangles................................. 9-1/2"x3-1/4"
Capacity Channels................................... 10" x 2-5/8"
Blade Diameter...................................... 15-3/4"
Cutting Speeds, Range............................... 59-118 FPM
Head Feeds, Range Infinitely Variable............... 0 to 80 IPM
Rapid Return........................................ 70 IPM
Electrical System................................... 440/3/60
Approximate Machine Weight.......................... 2,000 LBS



CONDITION:  Machine appears to be in Very Good Condition !
