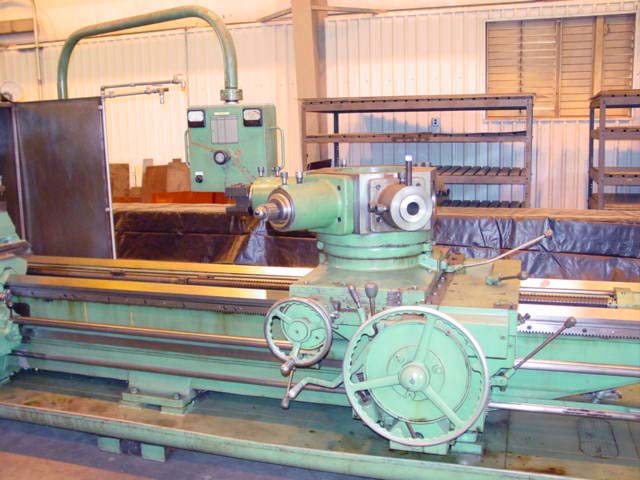

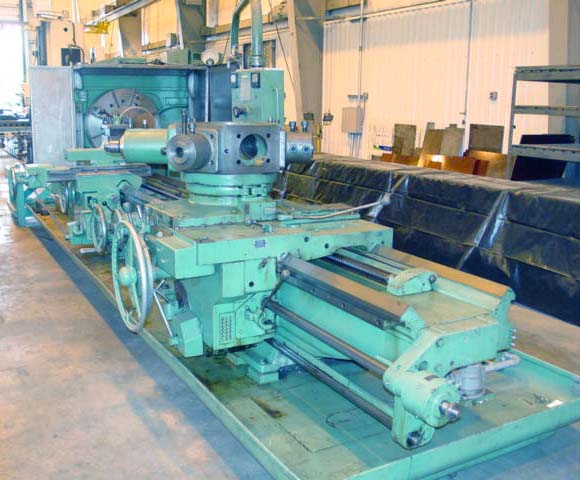

Warner & Swasey 5A Square Head Saddle Type Turret Lathe
Model 3600 SN:2316558 Mfg:1968
Equipped with:
28" HD 4 Jaw Chuck with tops reversible jaws
Pendant controlled variable spindle speeds
Rear Cross sliding hex turret
Lead on threading to rear hex turret
Front carriage with power feeding compound
F&R longitudinal rapid traverse to carriages
Chip pan and coolant pump
Four foot extra bed length
Assorted flanged tool holders
Swing over ways...................................................36.5"
Max Distance, Chuck face to turret face............144"
Spindle speeds (variable)...................................10 to 281 RPM
Hole thru spindle...................................................12.5"
Spindle Nose.........................................................A1-20
Main motor.............................................................50 HP
Overall dimensions...............................................90"x 290"x
90"high
Weight approx.......................................................32,000 LBS
Condition: Appears to be in Excellent Condition !
