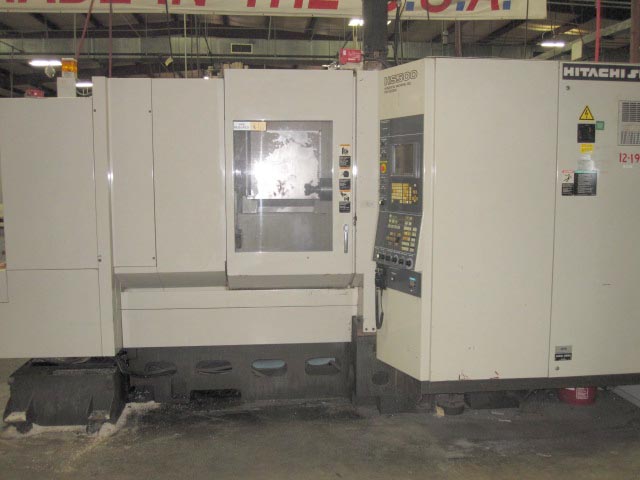

HITACHI SEIKI HS500 CNC HORIZONTAL MACHINING CENTER
New 1999

EQUIPPED WITH:
Seicos Simga CNC Control w/Color CRT , Multi-Part
Program Storage, (2) 19.7" x 19.7" Pallets with 1 Degree Indexing,
Heavy Duty 12,000 RPM Cat-40 Spindle, Hydraulic Fixture Clamping,

Spindle Load Monitor, Spindle Chiller, Rigid Tapping, 40 Station Automatic Tool
Changer, Chip Conveyor, Thru Spindle Coolant.

CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 26.8"
Vertical Travel (Y-Axis) ............................... 26.8"
Spindle Travel (Z-Axis) ................................ 26.8"
Pallet Dimensions ...................................... 19.7"x19.7"
Maximum Pallet Load .................................... 1100 LBS
Number of Pallets ...................................... 2
Number of Index Positions............................... 360
Feed Rate, All Axes .................................... 787 IPM
Rapid Traverse, All Axes ............................... 1772 IPM
Spindle Horsepower...................................... 30 HP
Spindle Speed Range..................................... 60 - 12000 RPM
Spindle Taper .......................................... Cat-40
Number of Tool Stations ................................ 40
Electrics .............................................. 460/3/60
Approximate Machine Dimensions ......................... 159" x 123"
Approximate Machine Height.............................. 114"
Approximate Machine Weight.............................. 23,100 LBS

CONDITION: Super Low Hours.  Only 940 Cutting Hours.
Appears to be in Excellent Condition !
