OKUMA VTL-28 CNC VERTICAL TURNING CENTER
Model VTL-28, New 2000
Stock# K13507
EQUIPPED WITH:

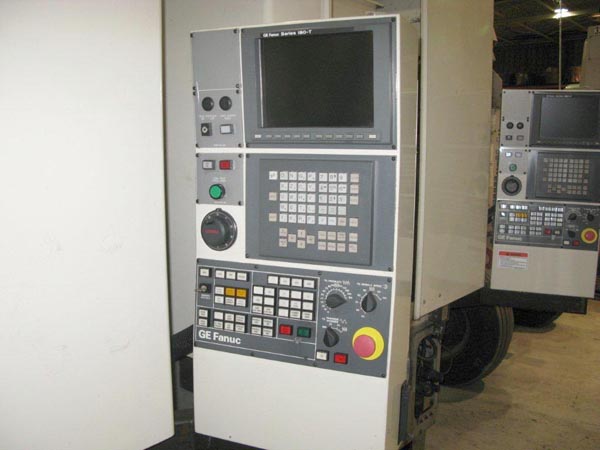

Fanuc 180T CNC Control w/CRT, Multiple Part Program Storage,
Auto
Backlash Compensation, Hydraulic Part Clamping,
Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing
...........................................................
15"
Maximum Turning Diameter................................
13.78"
Maximum Turning Length..................................
11.81"
Cross Travel (X-Axis)................................... 7.09"
Vertical Travel (Z-Axis)............................ 11.81"
Feed Range (Infinitely Variable)........................
.1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 630
IPM
Rapid Traverse Rate (Y-Axis)............................ 630
IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 10
Total
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments)..................
75-4000 RPM
Spindle Horsepower...................................... 15 HP
Approximate Machine Dimensions.......................... 54" x
66"
Approximate Machine Height.............................. 93
Approximate Machine Weight..............................
10,400 LBS
CONDITION: Machine Appears to be in Very Good Condition !!
