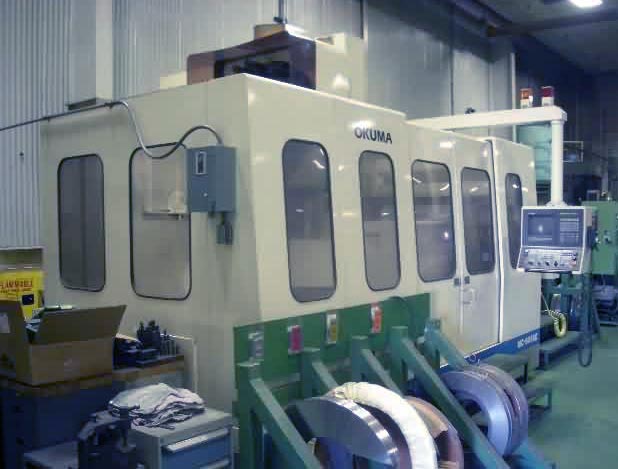

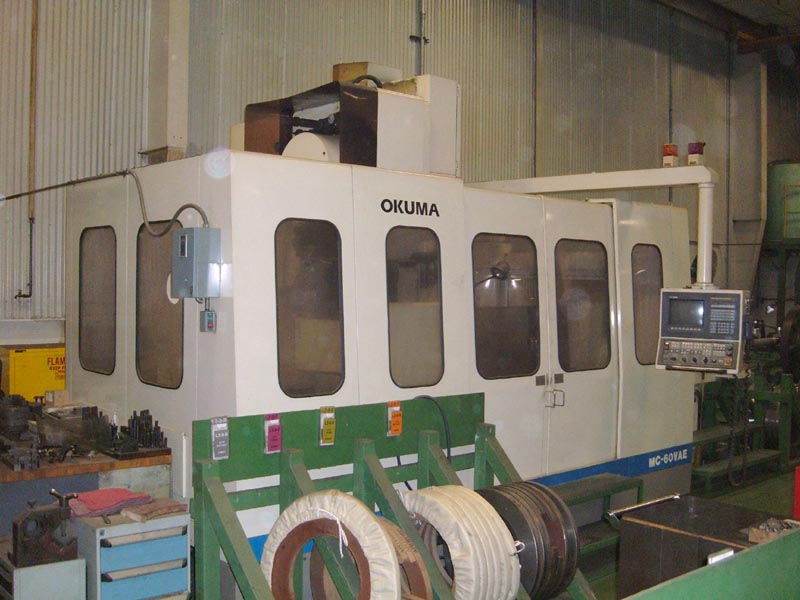

OKUMA MC-60VAE 2-Pallet  50-Taper CNC VERTICAL MACHINING CENTER
                       Model MC-60VAE,  New 1996, Stock# K13508



EQUIPPED WITH:



OSP 7000M CNC Control, RS 232 Port, 2-Pallet Automatic Pallet Shuttle,

Rigid Tap, Inch Metric Programming, Pendent MPG, 20 Position
Automatic Tool Changer,  Full Enclosure, Chip Conveyor,
Coolant System.



CATALOGUE SPECIFICATIONS:



Table Working Surface............................. 70.87" x 30.71"
Table Load Capacity............................... 3,300 LBS
Longitudinal Travel (X-Axis)...................... 59.06"
Cross Travel (Y-Axis)............................. 24.8"
Vertical Travel (Z-Axis).......................... 24.02"
Rapid Traverse Rate (X and Y Axes)................ 591 IPM
Rapid Traverse Rate (Z Axis)...................... 512 IPM
Tool Storage Capacity............................. 20
Spindle Speeds Range.............................. 50-5000 RPM
Spindle Taper..................................... CAT-50

Spindle Horse Power................................ 22 HP Continous

Spindle Horse Power ...............................  30 HP  30 Min Rating
Approximate Machine Dimensions.................... 270" x 160"
Approximate Machine Height........................ 126"
Approximate Machine Weight........................ 34,500 LBS



CONDITION: Machine has only 2500 Spindle Hours. Appears to be in Excellent Condition!
