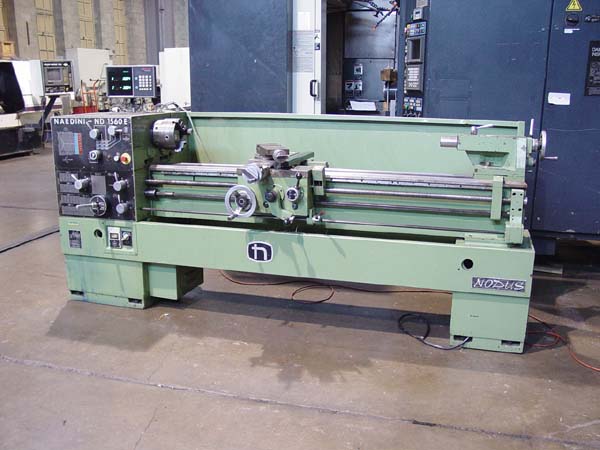

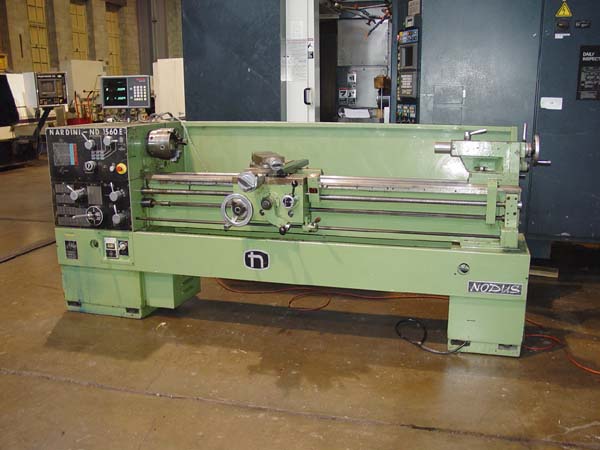

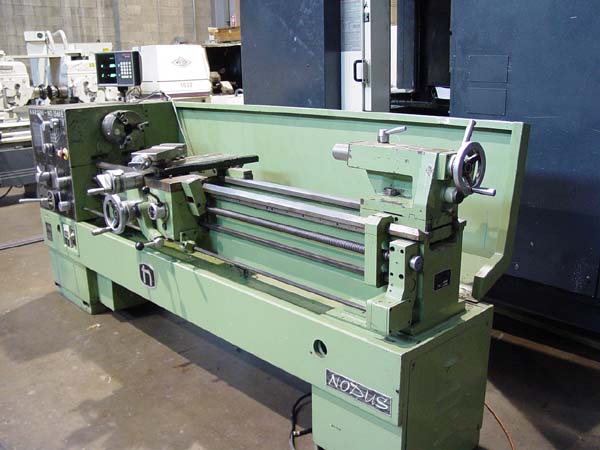

15" X 60" NARDINI ENGINE LATHE
                Model ND1560, S/N C7-JKO-722, New 1990
                              Stock# K13456

EQUIPPED WITH:

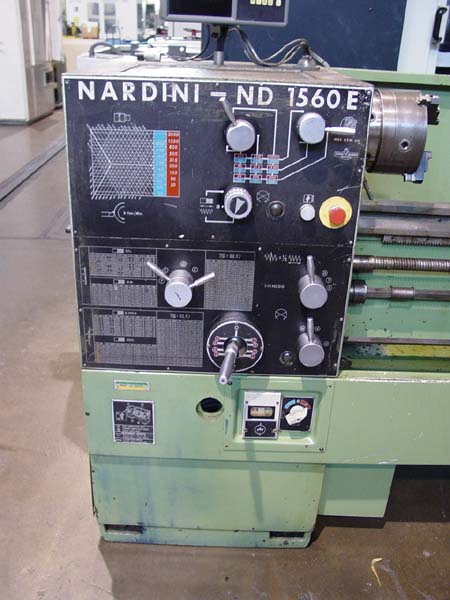

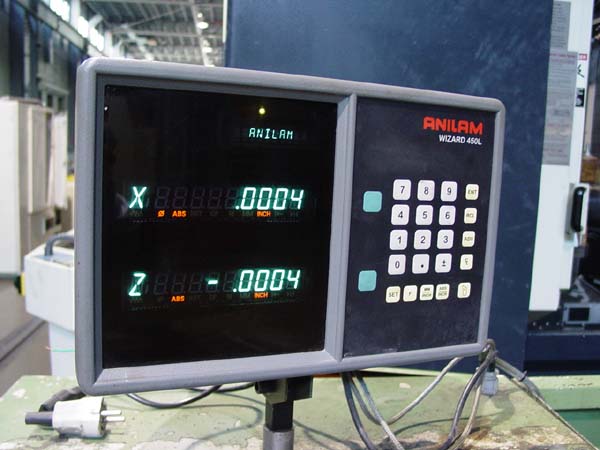

Anilam 450L 2-Axis Digital Read Outs, Inch and Metric Threading,

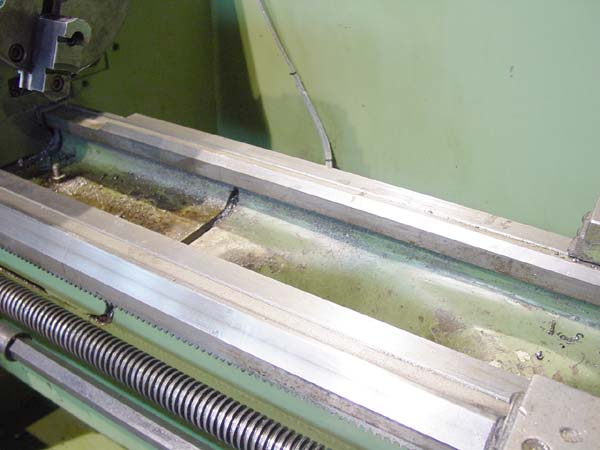

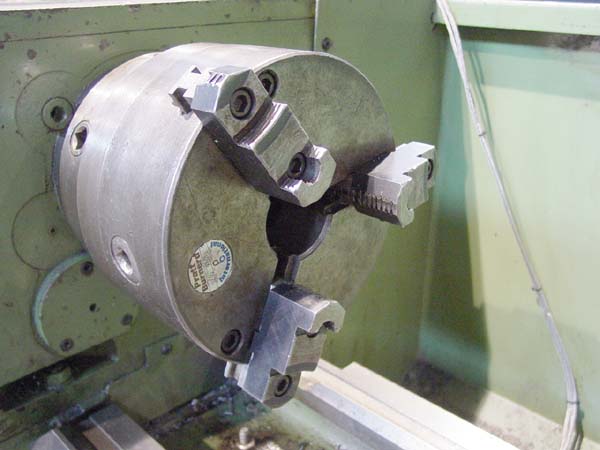

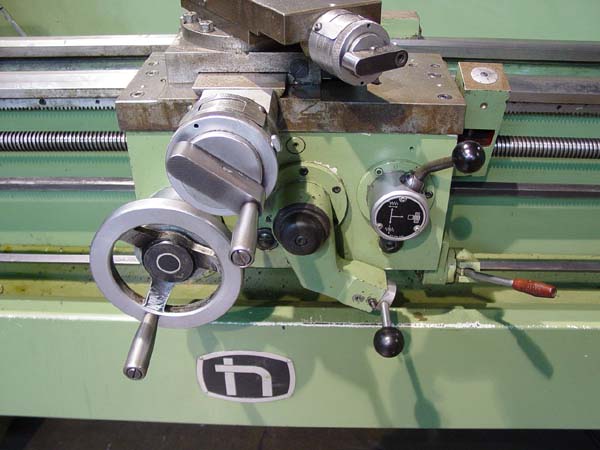

Threading Dial, Hardened and Ground Ways, 8" 3-Jaw Chuck, Full Chip Pan.

CATALOGUE SPECIFICATIONS:

Maximum Swing Over Bed............................... 15-3/8"
Maximum Swing Over Carriage.......................... 8-5/8"
Spindle Bore......................................... 2-1/32"
Max. Distance Between Centers........................ 60"

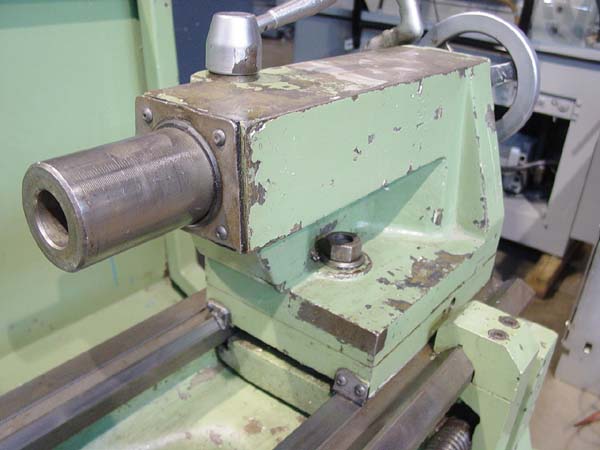

Tailstock, Spindle Travel............................ 8-1/2"
Tailstock, Spindle Diameter.......................... 2-3/8"
Tailstock, Spindle Taper............................. # 4MT
Spindle Speeds, Range................................ 25 to 2000 RPM
Spindle Nose, Type................................... D1-6
Spindle Horsepower................................... 7.5 HP
Approximate Machine Weight........................... 3,000 LBS



CONDITION: Machine Appears to be in Very Good Condition!
