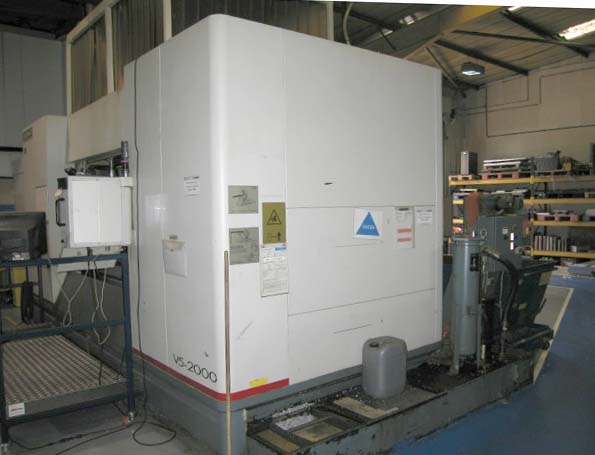

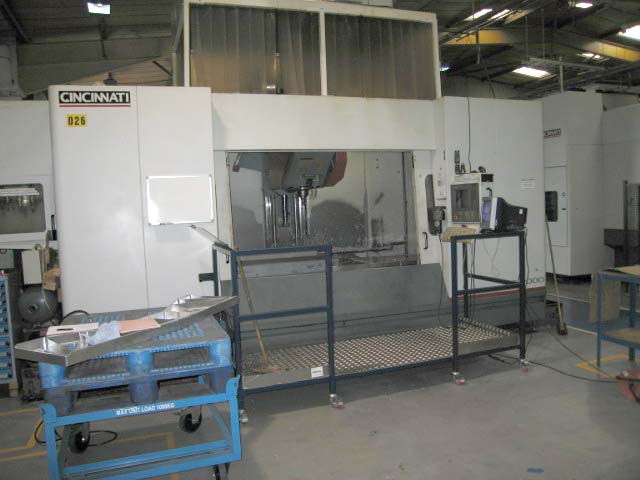

2000 Cincinnati Model V5-2000 5-Axis Vertical Machining
Center
Specifications
Travels (X-Y-Z) 80" x 30' x 30"
Spindle Tilt and Swivel +40 Degrees to -40 Degrees
Spindle: 15,000rpm 35HP HSK-63A Taper
ATC: 20 Tool
Max Tool Weight: 22LB
Max Length of Tool: 12"
Machine Weight: 33,450 LB
Features
Full 5-Axis Contouring with +/- 40 degrees of tilt and swivel on the
head
Linear scales on all axes
Acramatic A-2100 CNC Control
Twin swarf conveyers.
Twin high pressure coolant supply with thru spindle coolant.
Overall size 24ft x 10ft x 11ft.
