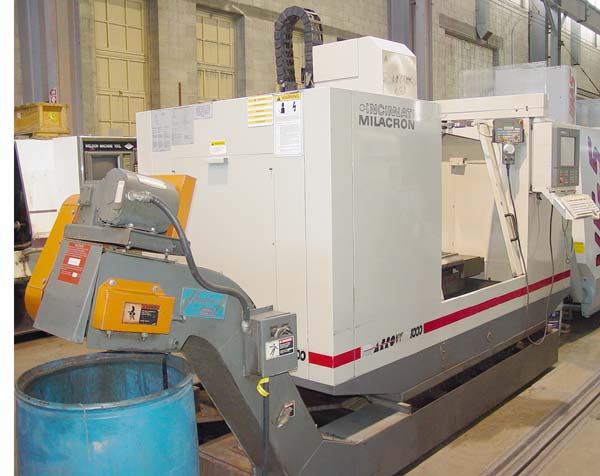

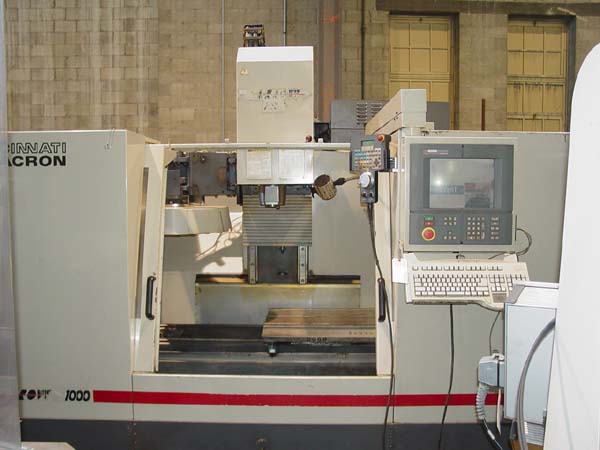

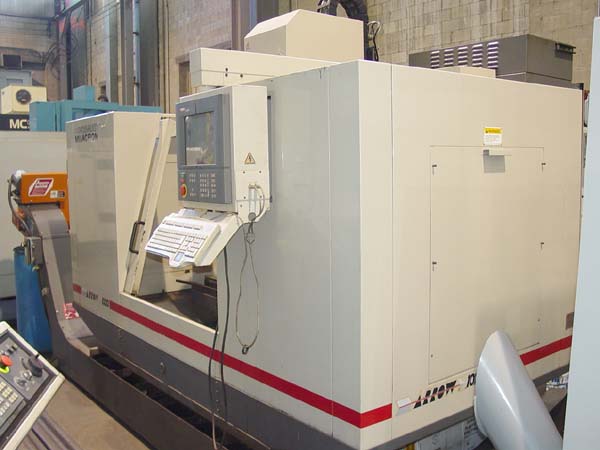

CINCINNATI ARROW 1000 CNC VERTICAL MACHINING
CENTER
New 1998, S/N 7049A0A970140 Stk# K13405
EQUIPPED WITH:

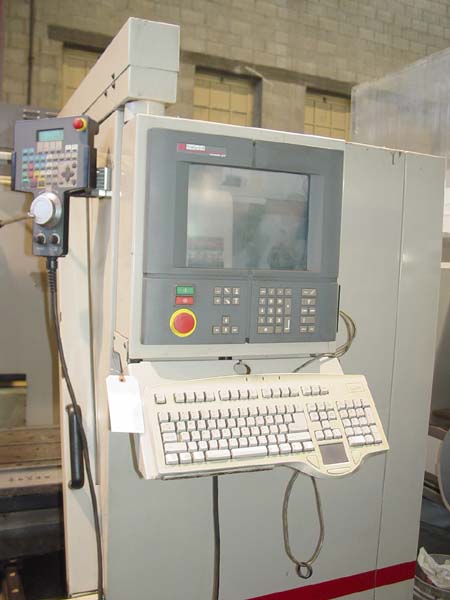

Acramatic 2100 PC Based CNC Control w/ Color
CRT, Maximum Program
Storage, 4th Axis Prewire Including Axis Drive, MC Extended Cycles,
Tool Cycle Timer and Counter, Migrating Tools, Fanuc 0 Program
Translation, Floppy Disk Drive, RS-232 Port, 21 Station Automatic Tool
Changer, Full Coolant Enclosure, Chip Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
X Travel (Longitudinal)............................... 40"
Y Travel (Cross)...................................... 20"
Z Travel (Vertical)................................... 22"
Table Working Surface................................. 44"x20"
Table Work Load Capacity.............................. 1540 LBS
Spindle Horsepower.................................... 15 HP
Spindle Speeds........................................ 60-8000 RPM
Spindle Taper......................................... CAT 40
Feed Rates, X & Y..................................... 0.1 to 472 IPM
Feed Rate, Z.......................................... 0.1 to 472 IPM
Rapid Traverse X & Y.................................. 787 IPM
Rapid Traverse Z...................................... 787 IPM
Tool Storage Capacity................................. 21
Approximate Dimensions................................ 138" x 118"
Approximate Height.................................... 109"
Approximate Weight.................................... 9,925 LBS
CONDITION: Machine appears to be in Excellent Condition !
