Okuma Model Captain L470-1250C CNC Lathe with Live Tooling

                         New 2004

   Equipped with:

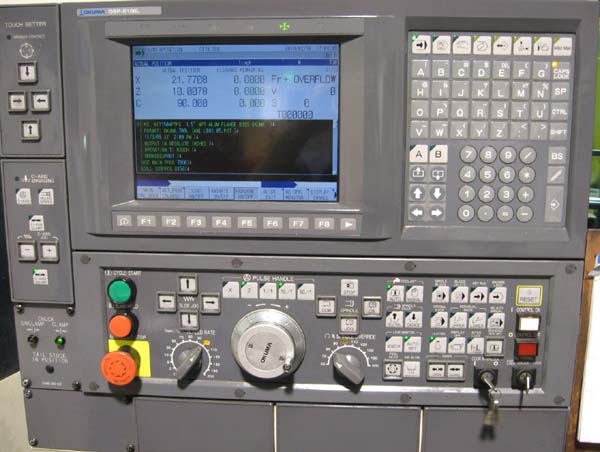

  OSP-E 100L CNC Control
  12" 3-Jaw Chuck

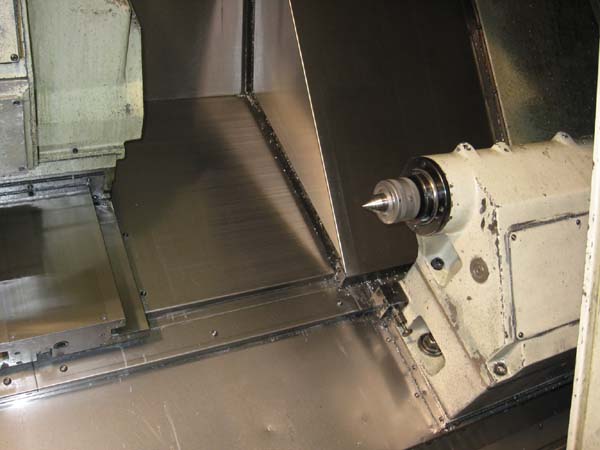

  Programmable Tailstock
  C-Axis
  All Available Live Tool Holders
   4 straight C-Axis Holders
   4 angled C-Axis Holders
   2 angled C-Axis Holders, Extended Length

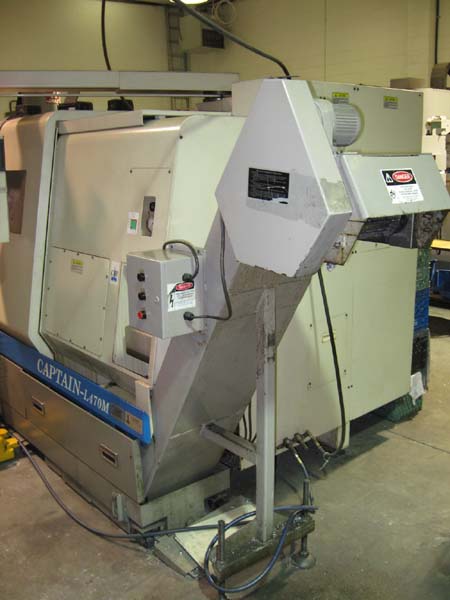

  Chip Conveyor
  Steady Rest


  X-Axis Travel:                          11.81"
  Z-Axis Travel:                          50.19"
  Max Swing Over Bed:                     24.4"
  Swing Over Carriage:                    18.89"
  Max. Turning Dia.:                      16.53"
  Max. Work Length:                       49.21"
  Spindle Speed:                          28-3000 RPM
  Spindle Nose:                           A2-11
  Spindle Bore:                           4.33"
  V-Turret Capacity:                      12
  Rapid Traverse:                         X-787, Z-984 ipm
  Tailstock Quill Taper:                  MT #5
  Tailstock Quill Dia.:                   3.94"
  Tailstock Quill Stroke:                 5.90"
  Spindle Motor:                          30 HP
