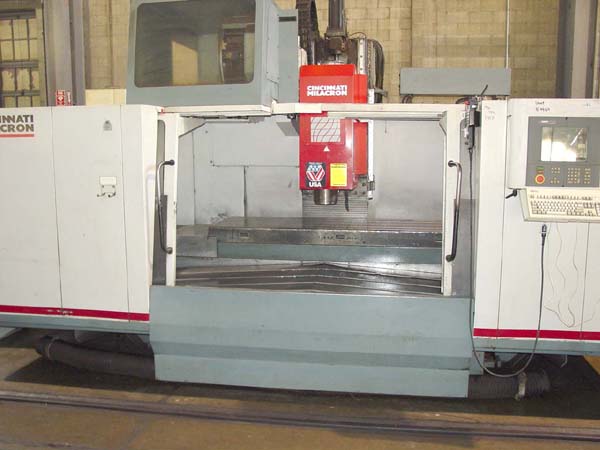

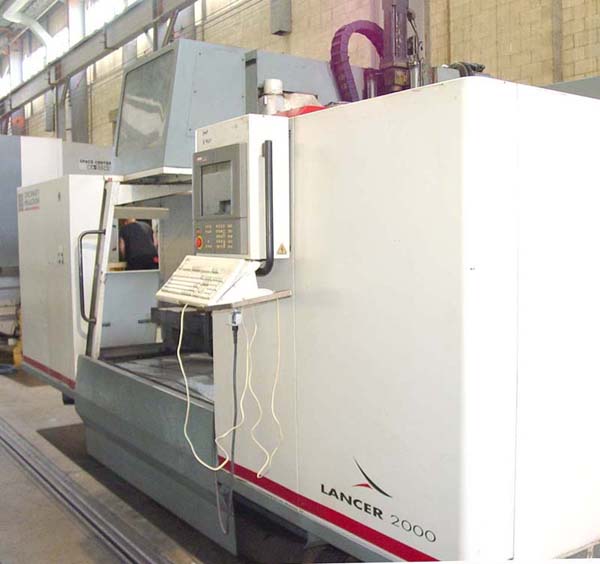

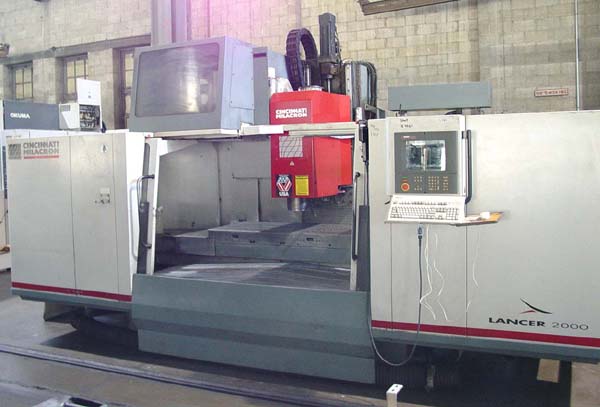

CINCINNATI LANCER-2000 CNC VERTICAL MACHINING CENTER
Model Lancer 2000, New 1998
Stock# K13353
EQUIPPED WITH:

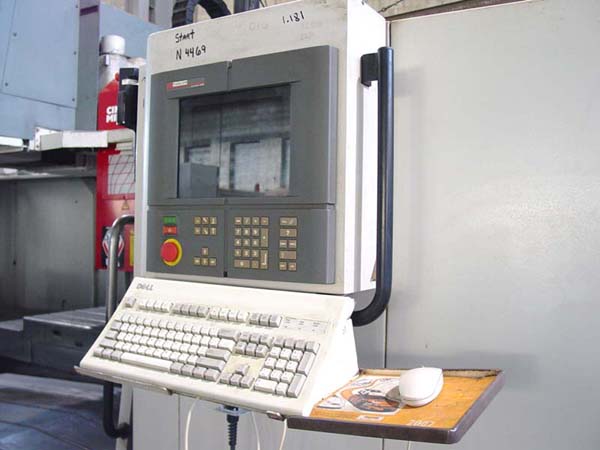

Touch Screen Acramatic 2100 CNC Control w/Color CRT, Linear Feedback
Scales, 3-1/2" Floppy Disk Drive Option, Resident Assistant Programmer
(RAP)(Allows the Operator to Program a Variety of Cycles Directly from
Screen Icons), Hand Held Pendant, Tool Setting RS232 Data Line, Rugged

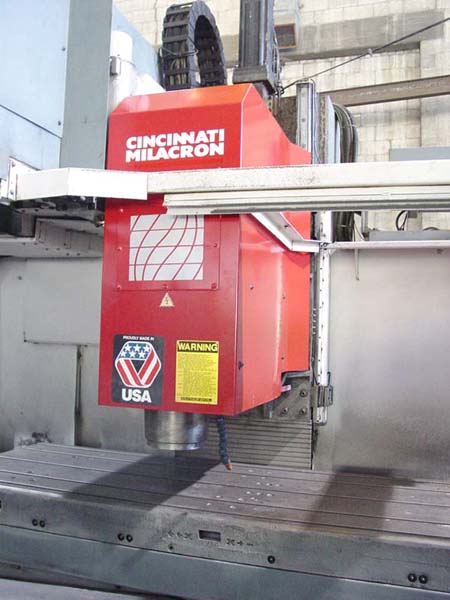

CAT 50 Spindle, Thru the Spindle Coolant, Chip Conveyor.
CATALOGUE SPECIFICATIONS:

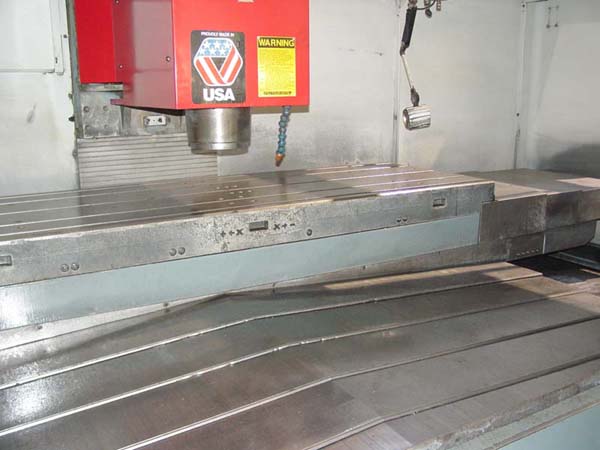

Table Working Surface................................. 90" x 30"
Table Load Capacity................................... 6615 LBS
Longitudinal Travel (X-Axis).......................... 80"
Cross Travel (Y-Axis)................................. 30"
Vertical Travel (Z-Axis).............................. 30"
Rapid Traverse Rate (X & Y-Axis)...................... 945 IPM
Rapid Traverse Rate (Z-Axis).......................... 590 IPM
Tool Storage Capacity................................. 30
Spindle Horsepower.................................... 25 HP
Spindle Speed Range................................... 40-6000 RPM
Spindle Taper......................................... #50 CAT
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 212"x138"
Approximate Machine Height............................ 142"
Approximate Machine Weight............................ 31,000 LBS
CONDITION: Machine appears to be in Excellent Condition !
