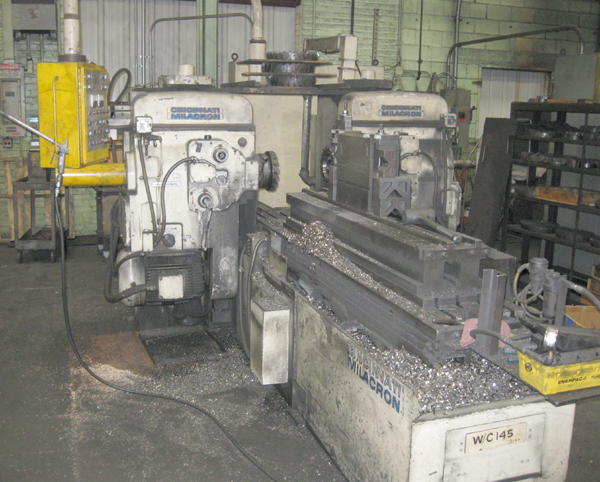

430-186 CINCINNATI
DUPLEX PRODUCTION MILL
Model 430-186 Hypowermatic, New 1980
Stock# K13308
EQUIPPED WITH:
(2) 30 HP Opposed Spindles, Heavy Duty Geared Spindles with
#50 Taper,

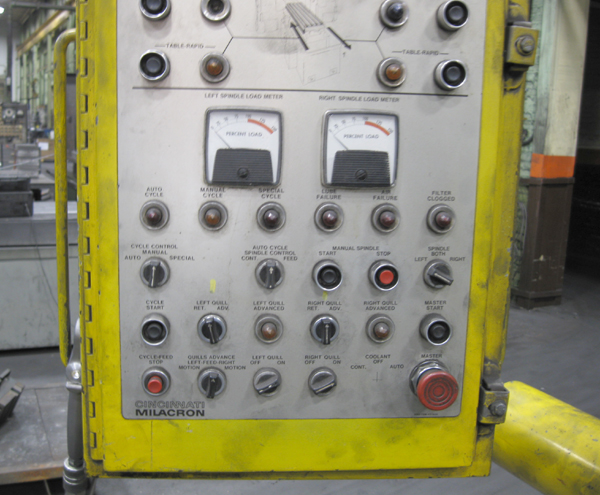

Automatic Quill Retraction, Automatic and Manual Cycles, Load
Meters, Built-in Coolant System.
CATALOGUE SPECIFICATIONS:
Table Dimensions (Overall) W x
L...................... 18"x98"
Table Longitudinal Travel (X-Axis).................... 72"
Spindle Head Vertical Travel (Y-Axis)................. 10"
Spindle Nose to Spindle Nose, Maximum................. 23"
Spindle Nose to Spindle Nose, Minimum................. 11"
Quill Diameter........................................ 8-1/2"
Quill Adjustment...................................... 6"
Spindle Taper......................................... 50
Spindle Speeds (24) Range............................. 30 to
1200 RPM
Longitudinal Table Feeds, Range....................... .5 to 150
IPM
Power Rapid Table Traverse............................ 300 IPM
Spindle Motor......................................... 30 HP
Each
Approximate Machine Dimensions........................ 186" x
106"
Approximate Machine Height............................ 78"
Approximate Machine Weight............................ 19,000
LBS
CONDITION: Machine Appears to be in
Excellent Condition!
