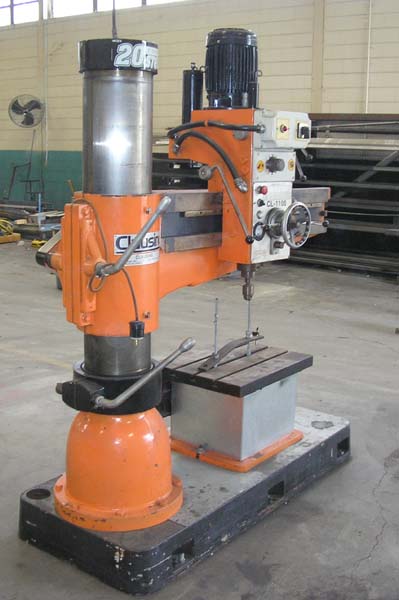

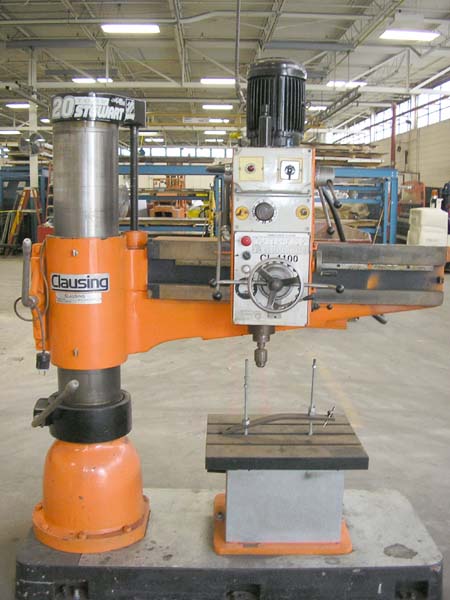

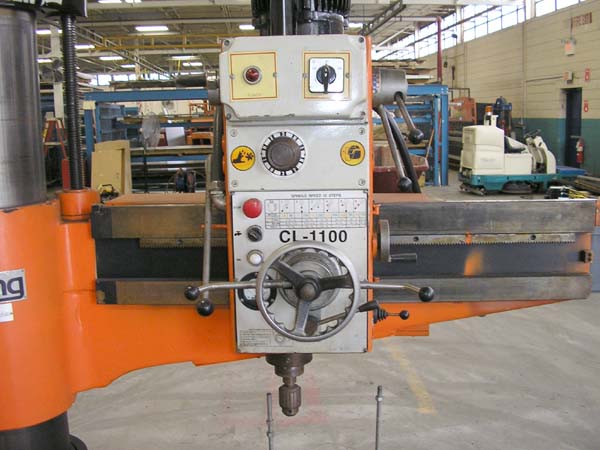

44" x 10" CLAUSING RADIAL DRILL
                  Model CL-1100, New 2000, Stock# K13246



EQUIPPED WITH:

Power Arm Elevation, Hardened and Ground Arm Ways, Tapping,
20" x 24" x 16" Box Table, Coolant System.



CATALOGUE SPECIFICATIONS:

Arm Length............................................ 44"
Column Diameter....................................... 10.24"
Working Surface of Base (T-Slotted)................... 27.6' x 47.3"
Vertical Spindle Travel in Head....................... 9.05"
Vertical Travel of Horiz Arm on Column................ 22.4"
Horizontal Head Travel on Arm......................... 32.3"
Distance Spindle to Base, Maximum..................... 50"
Distance Spindle to Base, Minimum..................... 18.5"
Face of Column to Spindle Center, Maximum............. 43.3"
Face of Column to Spindle Center, Minimum............. 11"
Spindle Taper......................................... #4 MT
Spindle Diameter...................................... 3.15"
Spindle Speeds Range.................................. 44 to 1500 RPM
Spindle Feeds......................................... .006.0035.002IPR
Motor................................................. 3 HP
Electrics............................................. 220/3/60
Height of Base........................................ 7.1"
Approximate Machine Dimensions........................ 30" x 68"
Approximate Machine Height ........................... 99"
Approximate Machine Weight............................ 4200 LBS



CONDITION: Appears to be in Excellent Condition !
