EQUIPPED WITH:

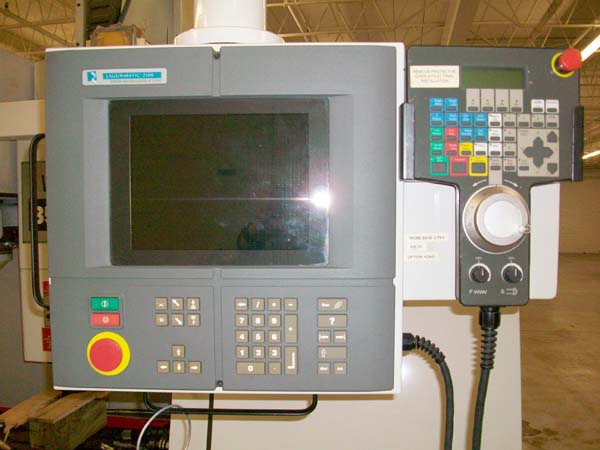

Lagunamatic 2100 CNC Control, RS-232 Port, 10,000 RPM Spindle, Rigid
Taping, 100MB Part
Program Storage, Self Diagnostics, Ethernet Connection, 18
Station Automatic Tool Changer, Manual Pulse Generator, Axis Error
Compensation, Cutter Compensation, Full Enclosure, Coolant and Chip
System.
CATALOGUE
SPECIFICATIONS:
Table Working Surface................................. 35-1/2" x
15-3/4"
Table Load Capacity................................... 2,000 LBS
Longitudinal Travel (X-Axis).......................... 30"
Cross Travel (Y-Axis)................................. 16"
Vertical Travel (Z-Axis).............................. 20"
Spindle Nose to Table................................. 6" - 26"
Rapid Traverse Rate (X & Y-Axes)...................... 1200 IPM
Rapid Traverse Rate (Z-Axis).......................... 600 IPM
Tool Storage Capacity................................. 18
Spindle Horsepower.................................... 15 HP
Spindle Speeds Range.................................. 60-10000 RPM
Spindle Taper......................................... Cat-40
Electrics............................................. 230//3/60
Approximate Machine Dimensions........................ 84" x 110"
Approximate Machine Height............................ 110"
Approximate Machine Weight............................ 12,500 LBS
