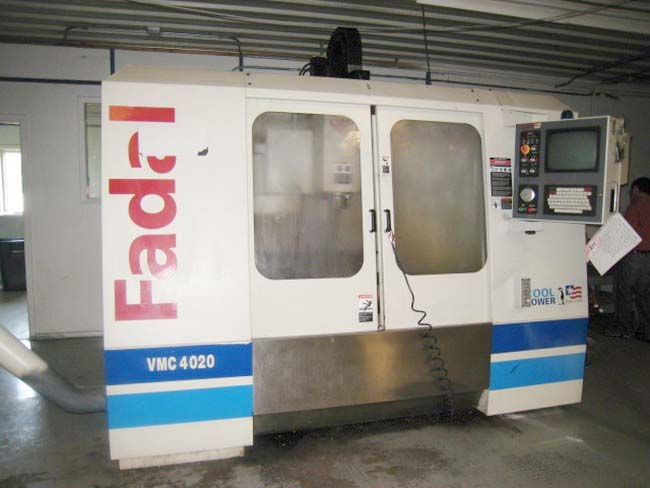

FADAL VMC 4020 CNC VERTICAL
MACHINING CENTER
Model 4020, New 2000
Stock # K13243
EQUIPPED WITH:

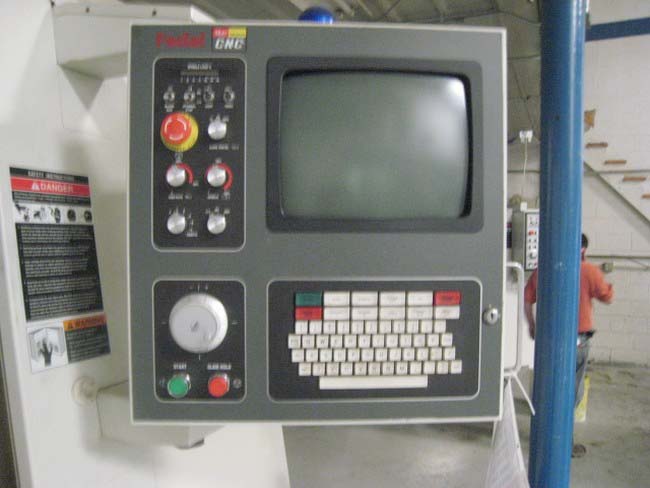

Fadal CNC Multi Processor CNC Control, RS-232 Port, 422K Multiple
Part
Program Storage, Self Diagnostics, 21 Station Automatic Tool
Changer, Manual Pulse Generator, Axis Error Compensation,

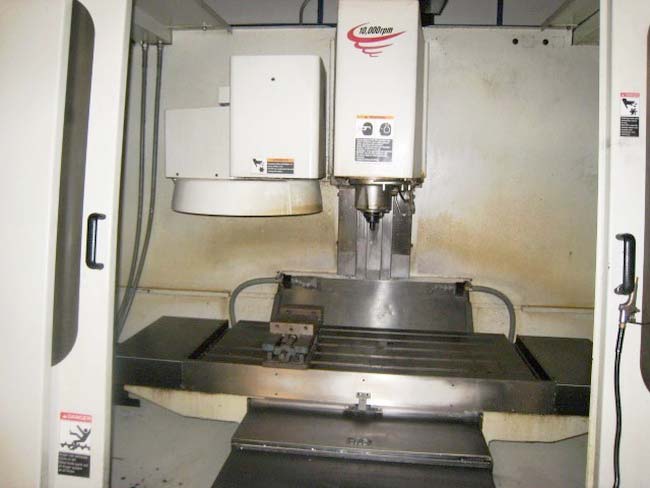

Cutter Compensation, Full Enclosure, Coolant and Chip System.
CATALOGUE
SPECIFICATIONS:
Table Working Surface................................. 48" x 20"
Table Load Capacity................................... 1,500 LBS
Longitudinal Travel (X-Axis).......................... 40"
Cross Travel (Y-Axis)................................. 20"
Vertical Travel (Z-Axis).............................. 20"
Spindle Nose to Table................................. 4" - 24"
Rapid Traverse Rate (X & Y-Axes)...................... 700 IPM
Rapid Traverse Rate (Z-Axis).......................... 600 IPM
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 15 HP
Spindle Speeds Range.................................. 40-10000 RPM
Spindle Taper......................................... Cat-40
Electrics............................................. 230/460/3/60
Approximate Machine Dimensions........................ 87" x 116"
Approximate Machine Height............................ 95"
Approximate Machine Weight............................ 10,500 LBS
CONDITION: Appears to
be in Excellent Condition !
