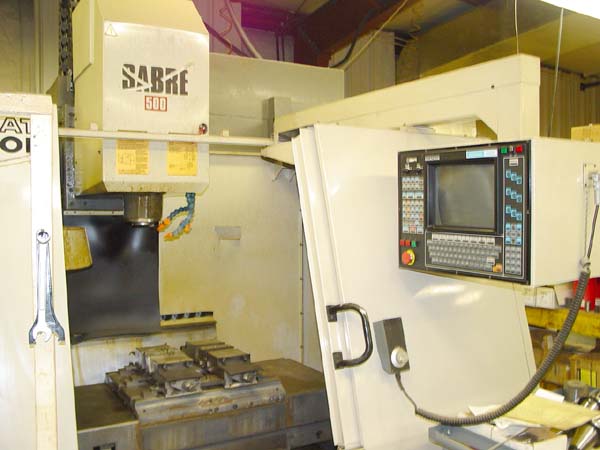

CINCINNATI SABRE-500 CNC VERTICAL MACHINING
CENTER
New 1995, S/N 7040A01-95-0391
Stock #K13238
EQUIPPED WITH:
Cincinnati Acramatic 850SX CNC w/Color CRT. Rigid/Solid Tapping, AC
RS232 Data Line, Fanuc Compatibility, 21 Station Automatic Tool Changer,
Full Coolant Enclosure, Coolant System
CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 25.6" x 20"
Table Load Capacity................................... 770 LBS
Longitudinal Travel (X-Axis).......................... 20"
Cross Travel (Y-Axis)................................. 20"
Vertical Travel (Z-Axis).............................. 22"
Feed Rates (X & Y-Axis)............................... .1 - 787 IPM
Feed Rates (Z-Axis)................................... .1 - 708 IPM
Rapid Traverse Rate (X & Y-Axis)...................... 787
Rapid Traverse Rate (Z-Axis).......................... 708
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 15 HP
Spindle Speed Range................................... 60-8000 RPM
Spindle Taper......................................... #40
Approximate Machine Dimensions........................ 102" x 100"
Approximate Machine Height............................ 108"
Approximate Machine Weight............................ 8,900 LBS
CONDITION: From a Precision Tool Shop. Only use occasionally. Very Low
Hours. Machine Appears to be in Excellent Condition !
PRICE: Mid-Western Location........................ $ 14,500.
