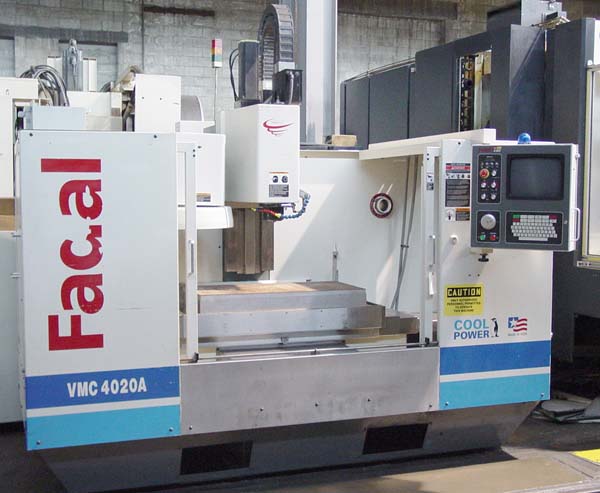

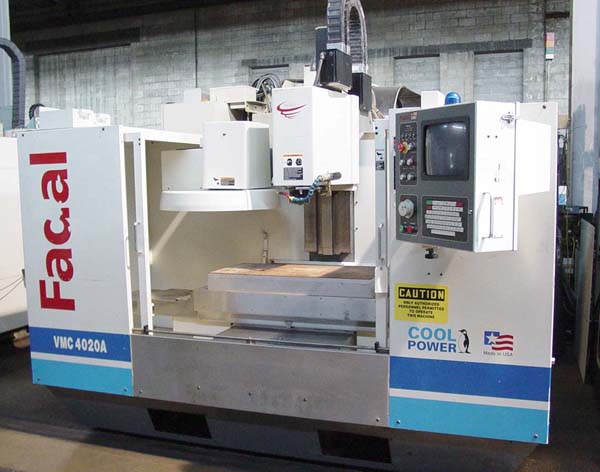

FADAL CNC VERTICAL MACHINING
CENTER
Model 4020, S/N 012001102849, New 2001, Stock # K13217
EQUIPPED WITH:

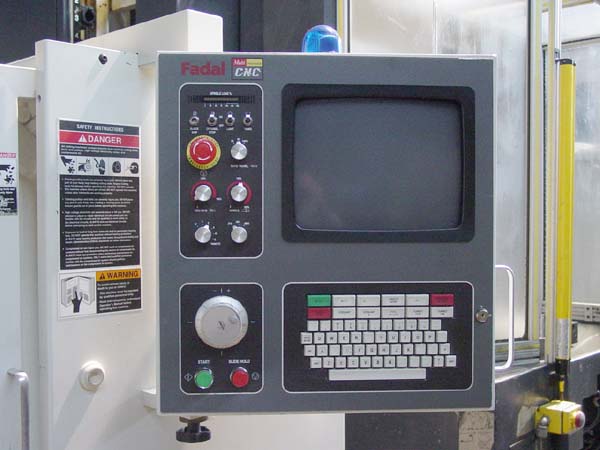

Fadal CNC Multi Processor CNC Control, RS-232 Port, Maximum Multiple
Part
Program Storage, High Speed CPU, Graphics, Self Diagnostics, High Speed

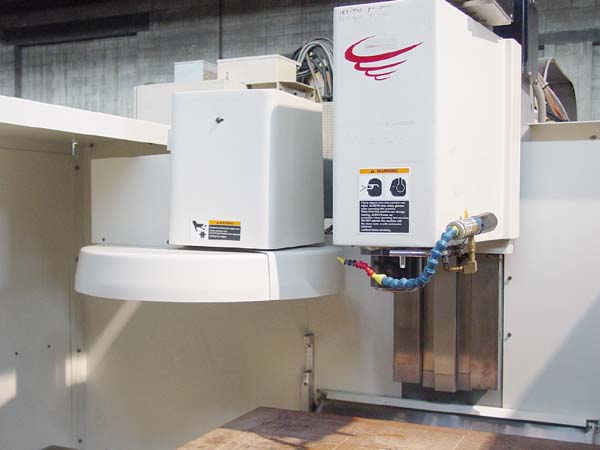

40,000 RPM Ibag High Frequency Variable Speed Spindle, 30 Station
Automatic Tool Changer, Manual Pulse Generator, Axis Error Compensation,
Cutter Compensation, Full Enclosure, Coolant and Chip System.
CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 48" x 20"
Table Load Capacity................................... 1,500 LBS
Longitudinal Travel (X-Axis).......................... 40"
Cross Travel (Y-Axis)................................. 20"
Vertical Travel (Z-Axis).............................. 20"
Spindle Nose to Table................................. 4" - 24"
Rapid Traverse Rate (X & Y-Axes)...................... 700 IPM
Rapid Traverse Rate (Z-Axis).......................... 600 IPM
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 15 HP
Spindle Speeds Range.................................. 10000-40000 RPM
Spindle Taper......................................... SKI-20
Electrics............................................. 230/460/3/60
Approximate Machine Dimensions........................ 87" x 116"
Approximate Machine Height............................ 95"
Approximate Machine Weight............................ 10,500 LBS
CONDITION: Appears to be
in Excellent Condition !
