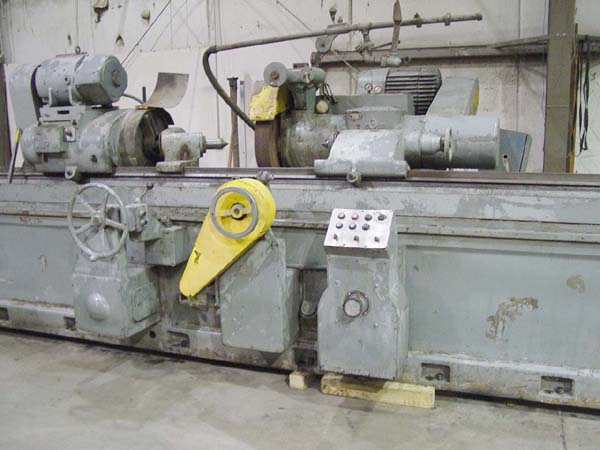

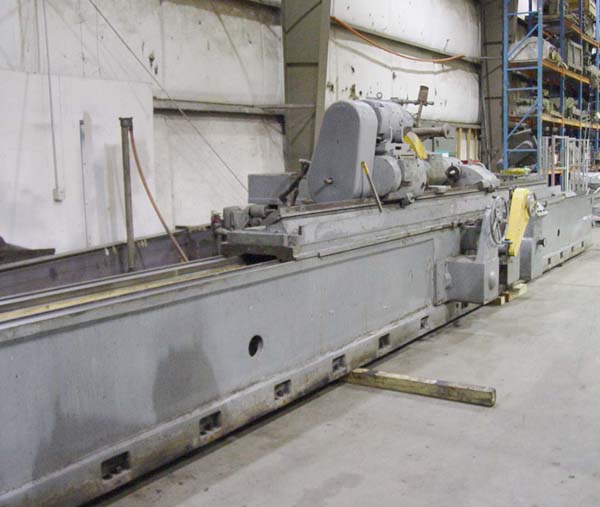

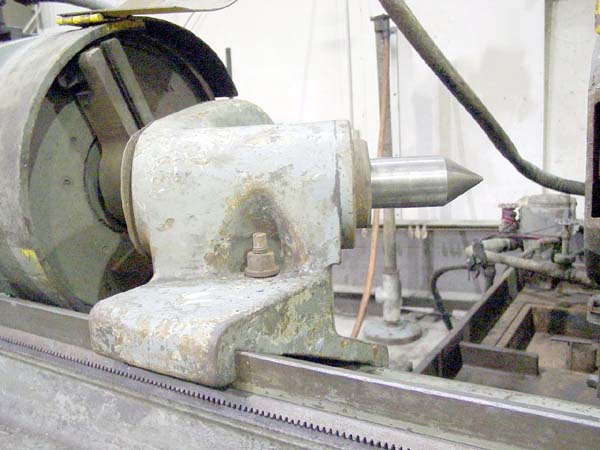

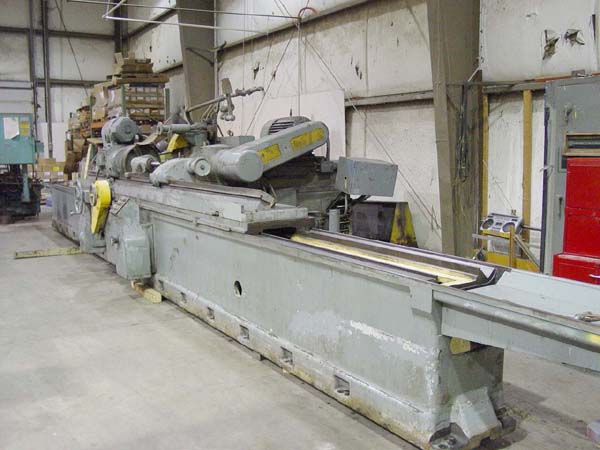

ACTUAL PHOTOS

    18"x168" CINCINNATI HEAVY DUTY PLAIN CYLINDRICAL GRINDER
                            New 1961, Stock # K13194

EQUIPPED WITH:

Automatic Pickfeed Infeed, Tarry, Footstock Wheel Dresser, Steady
Rests, Center Grinding Attachment.

CATALOGUE SPECIFICATIONS:

Swing Over Bed......................................... 18-1/4"
Maximum Grinding Diameter with New Wheel............... 18"
Distance Between Centers............................... 168
Grinding Wheel Size.................................... 30"x3"x12"
Grinding Wheel Speed................................... 830 RPM
Taper Hole In Spindles................................. No. 13 B&S
Number of Headstock Spindle Speeds..................... Infinite
Range of Headstock Spinlde Speeds...................... 20 to 72 RPM
Type of Footstock...................................... Solid
Number of Table Traverse Rates......................... Infinite
Range of Table Traverse Rates.......................... 3-120 In/Min
Table Tarry Adjustment................................. 0-15 Sec.
Table Travel Per Turn of Handwheel..................... 1"
Infeed Movement Per Revolution of Handwheel............ 1/32"
Automatic Pick Feed at Ends of Stroke.................. .0002" to .0012"
Minimum Infeed Increment............................... .0001"
Wheelhead Motor........................................ 20 HP
Approximate Machine Dimensions......................... 108" x 408"
Approximate Machine Weight............................. 47,600 lbs

CONDITION:  Appears to be in Very Good Condition !
