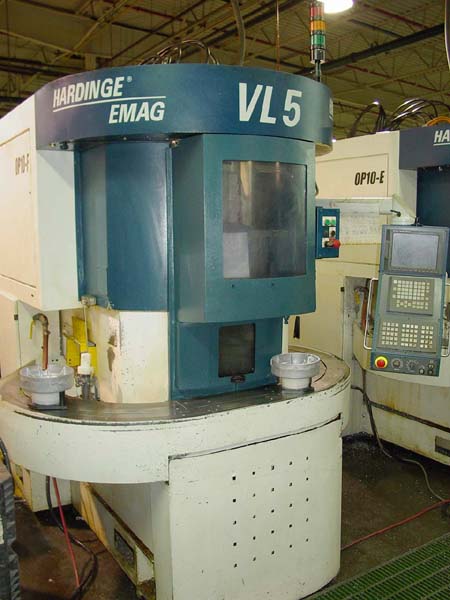

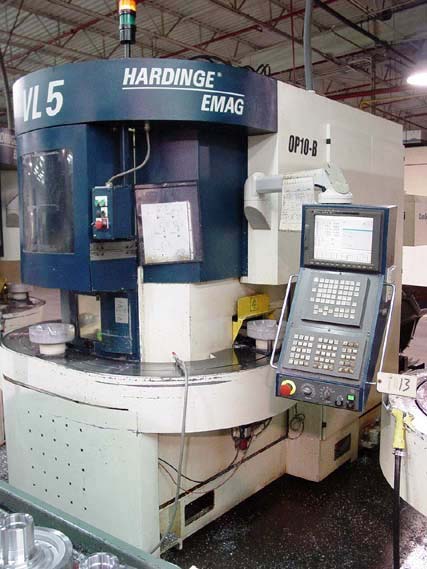

HARDINGE / EMAG INVERTED SPINDLE
VERTICAL TURNING CENTER w/LIVE TOOLING
Model VL-5, New 2001, Stock# K13167
EQUIPPED WITH:

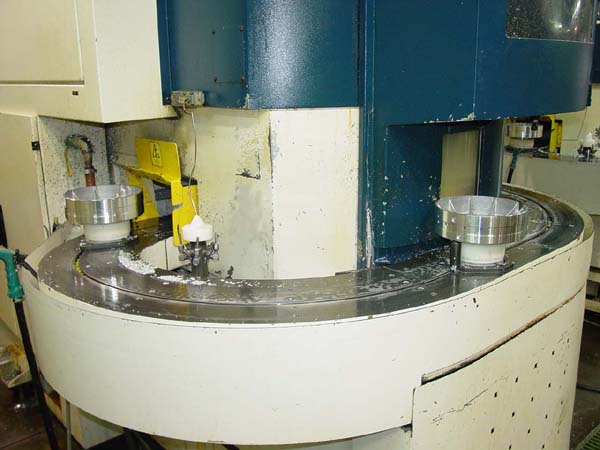

Fanuc 18i CNC Control w/CRT, Pick-up Style Automatic Part Loading and

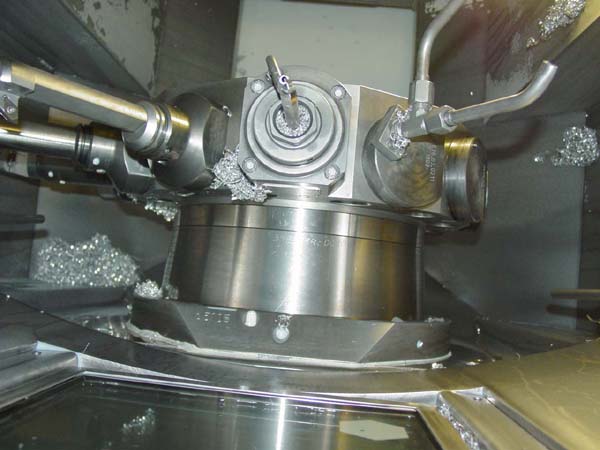

Unloading Systems, Live Tooling, 12 Position Tool Turret, Concept 2000
Chip Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
Number of Stations (Part Pallets)....................... 12
Part to Part (Load/Unload Time)......................... 4.5-6.5 Sec
Maximum Turning Diameter................................ 10.3"
Maximum Turning Length.................................. 4.7"
X-Axis Travel........................................... 22.4"
Z Axis Travel........................................... 7.87"
Rapid Traverse X-Axis................................... 2362 IPM
Rapid Traverse Z-Axis................................... 1181 IPM
Spindle Nose............................................ A2-6
Spindle Speeds.......................................... 50 - 4500 RPM
Spindle Motor........................................... 36 HP
Approximate Machine Dimensions.......................... 106" x 78"
Approximate Machine Height.............................. 95"
Approximate Machine Weight.............................. 15,500 LBS
Condition: Only Cut Aluminum ! Appears To Be in Excellent Condition!
