 KITAKO 4-SPINDLE CNC VERTICAL TURNING CENTER

Stock Number K13155

KITAKO VT4-200 FOR SALE Used CNC LATHE 4-SPINDLE CNC LATHE CNC VERTICAL TURNING CENTER

Kitako VT4-200

KITAKO VT4-200 FOR SALE Used CNC LATHE 4-SPINDLE CNC LATHE CNC VERTICAL TURNING CENTER

Kitako VT4-200

Kitako VT4-200

Kitako VT4-200

Kitako VT4-200

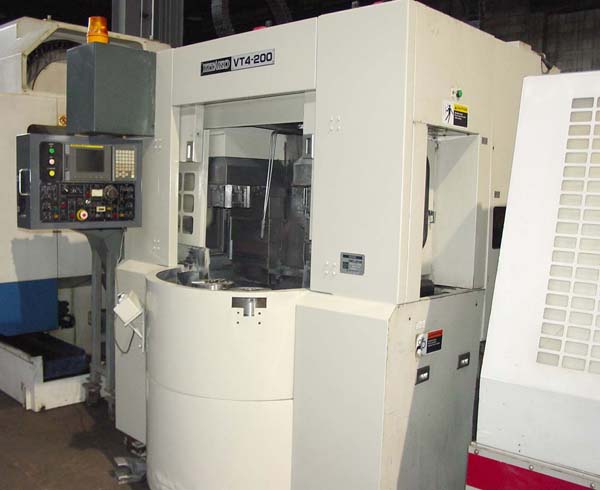

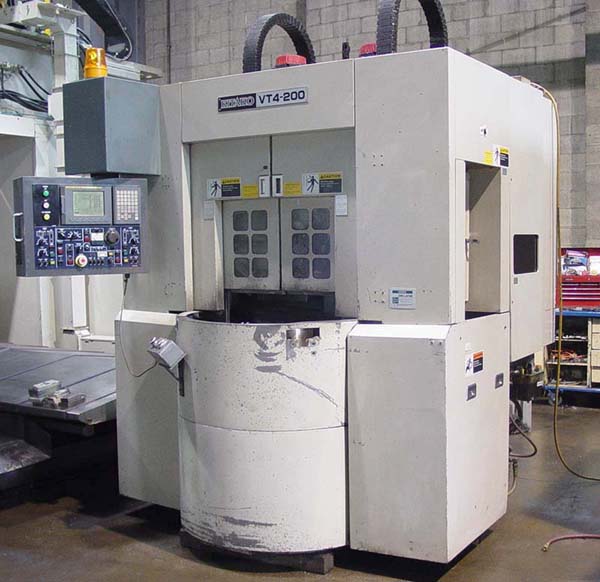

ACTUAL PHOTOS
 KITAKO 4-SPINDLE CNC VERTICAL TURNING CENTER
Model VT4-200, New 2000, S/N 84074
Stock# K13155


EQUIPPED WITH:

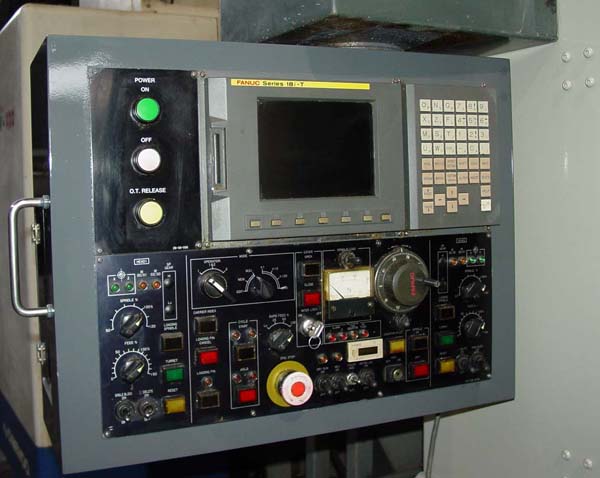

Fanuc 18iT CNC Control, RS-232 Port, Background Edit, (4) Spindle
Design with (2) in the Machining Area and (2) in Load Position, Separate
Drive for Each Spindle, (2) 8" 3-Jaw Kitagawa Power Chucks, Hydraulic
Actuators on all (4) Spindles for Chucks or Hydraulic Clamping.
Spindle Orientation, 6 Position Tool Turrets, Concept 2000 Chip
Conveyor and Coolant System.


CATALOGUE SPECIFICATIONS:
Number of Spindles...................................... 4
Chuck Size.............................................. 8"
Max Swing............................................... 10"
Max Turning Diameter with Standard Tools................ 7.9"
Max Turning Length...................................... 7.9"
X-Axis Stroke........................................... 6.7"
Z-Axis Stroke........................................... 14"
Rapid Traverse X-Axis................................... 787 IPM
Rapid Traverse Z-Axis................................... 945 IPM
Spindle Nose............................................ A2-6
Spindle Speeds.......................................... 50 - 4000 RPM
Spindle Motor........................................... 10 HP
Approximate Machine Dimensions.......................... 86" x 78"
Approximate Machine Height.............................. 95"
Approximate Machine Weight.............................. 17,500 LBS


Condition: Only Cut Aluminum ! Appears To Be in Excellent Condition!
