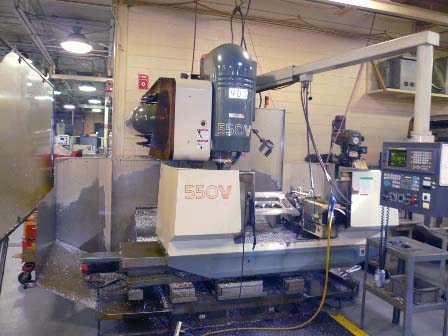

ENSHU 550V CNC VERTICAL MACHINING CENTER
New 1994, S/N 223, Stock# K13140
EQUIPPED
WITH:
Fanuc 16M CNC, Multiple Part Program Storage, RS-232 Port, AC Spindle
and Axis Drives, Programmable Offsets, Tool Tip Graphics, Rugged CAT
50
Spindle, Full Contouring 4th Axis Rotary Table with Tailstock, Super
Heavy Duty Box Ways, Chip Auger and Coolant System.
CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 51.2" x 21.7"
Table Load Capacity................................... 2750 LBS
Longitudinal Travel (X-Axis).......................... 41.3"
Cross Travel (Y-Axis)................................. 21.7"
Vertical Travel (Z-Axis).............................. 22"
Rapid Traverse Rate (X & Y-Axis)...................... 591 IPM
Rapid Traverse Rate (Z-Axis).......................... 473 IPM
Tool Storage Capacity................................. 30
Spindle Horsepower.................................... 20 HP
Spindle Speed Range................................... 40-6000 RPM
Spindle Taper......................................... #50 CAT
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 102" x 100"
Approximate Machine Height............................ 108"
Approximate Machine Weight............................ 22,000 LBS
CONDITION: Machine appears to be in Excellent Condition !
