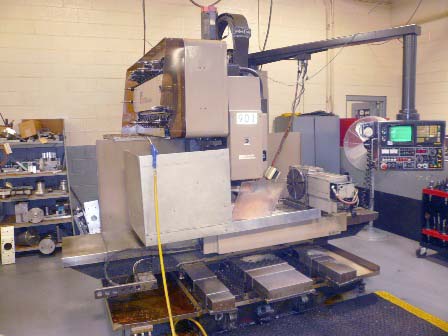

ENSHU VMC-530 CNC VERTICAL MACHINING CENTER
New 1986, S/N 206, Stock# K13138
EQUIPPED WITH:

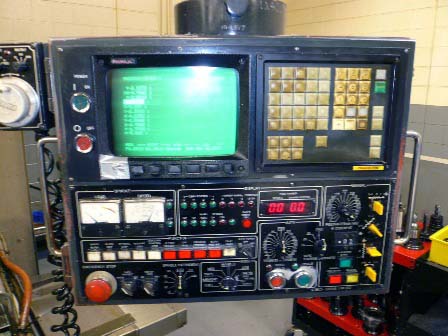

Fanuc 11M CNC, Multiple Part Program Storage, RS-232 Port, Programmable
Offsets, Rugged CAT 50 Spindle, Full Contouring 12" Tsudakoma 4th Axis
Rotary Table, Super Heavy Duty Box Ways, Coolant System.
CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 51.2" x 21.7"
Table Load Capacity................................... 2750 LBS
Longitudinal Travel (X-Axis).......................... 40"
Cross Travel (Y-Axis)................................. 20.9"
Vertical Travel (Z-Axis).............................. 22.6"
Rapid Traverse Rate (X & Y-Axis)...................... 590 IPM
Rapid Traverse Rate (Z-Axis).......................... 472 IPM
Tool Storage Capacity................................. 30
Spindle Horsepower.................................... 20 HP
Spindle Speed Range................................... 40-4000 RPM
Spindle Taper......................................... #50 CAT
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 102" x 100"
Approximate Machine Height............................ 108"
Approximate Machine Weight............................ 22,000 LBS
CONDITION: Machine appears to be in Excellent Condition !
PRICE: F.O.B. Our Cincinnati, Ohio Warehouse ......... $ 19,500
