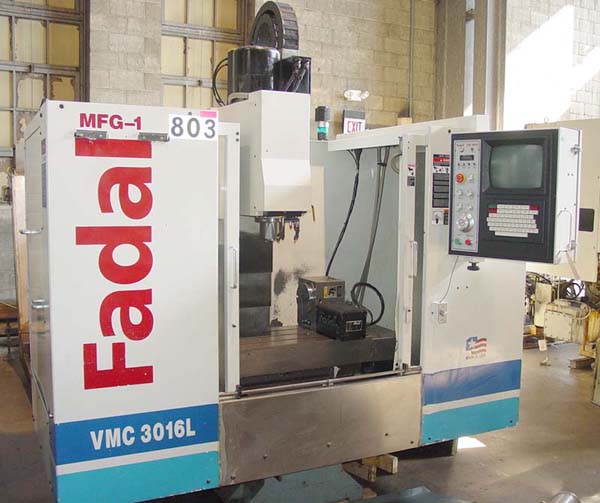

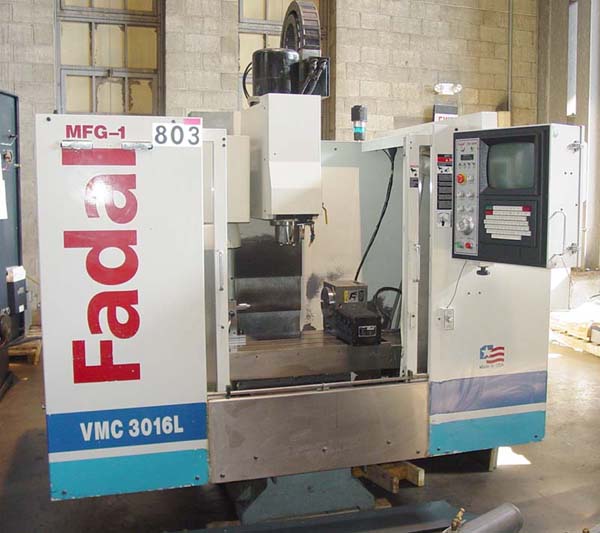

FADAL CNC VERTICAL MACHINING
CENTER
Model 3016L, New 1999, S/N 9909212
Stock# K13135
EQUIPPED WITH:

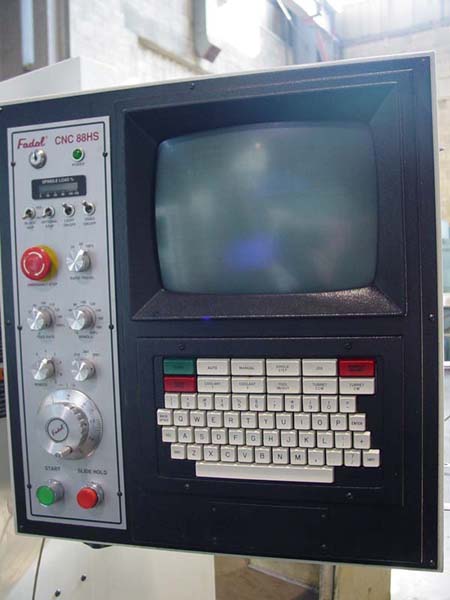

Fadal 88HS CNC Control, Fadal 4th Axis Rotary Table, RS-232 Port, Expanded 166K Multiple Part Program

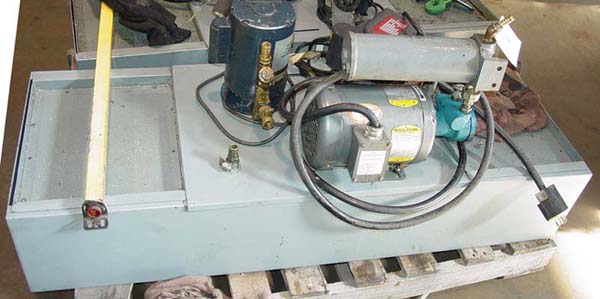

Storage, Rigid Tap, Thru-Spindle Coolant, 4th-Axis Pre-Wire,
Graphics, Self Diagnostics, 21 Station Automatic Tool Changer, Graphics,
Rigid Tapping, Axis Error Compensation, Full Enclosure, Coolant System.
CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 38" x 16"
Table Load Capacity................................... 1,500 LBS
Longitudinal Travel (X-Axis).......................... 30"
Cross Travel (Y-Axis)................................. 16"
Vertical Travel (Z-Axis).............................. 20"
Spindle Nose to Table................................. 4" - 24"
Rapid Traverse Rate (X & Y-Axes)...................... 700 IPM
Rapid Traverse Rate (Z-Axis).......................... 600 IPM
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 15 HP
Spindle Speeds Range.................................. 10- 10,000 RPM
Spindle Taper......................................... #40 Cat
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 87" x 106"
Approximate Machine Height............................ 95"
Approximate Machine Weight............................ 8,000 LBS
CONDITION: Appears to be in Excellent
Condition !
