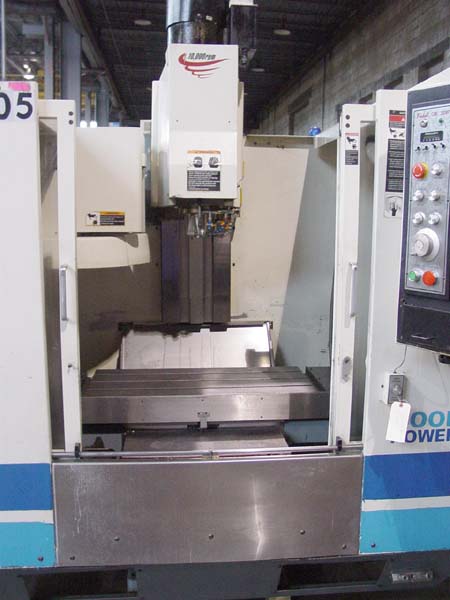

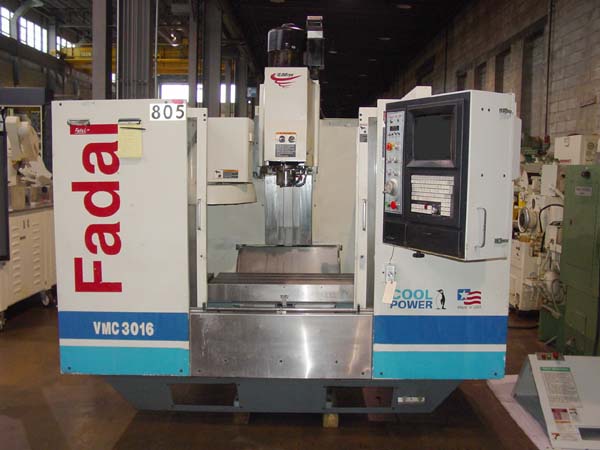

FADAL CNC VERTICAL MACHINING CENTER
Model 3016HT, New
1996, Stock# K13134
EQUIPPED WITH:

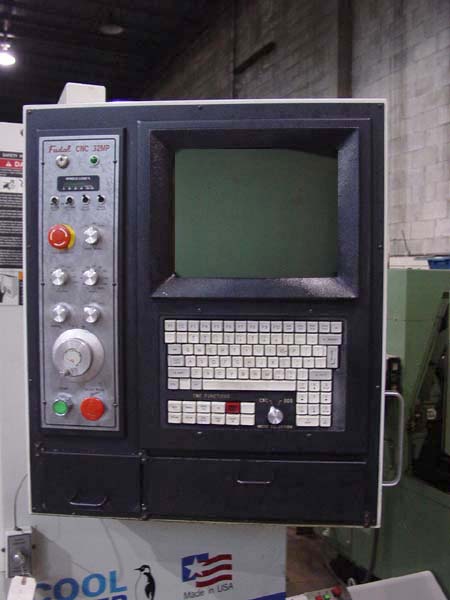

Fadal 32MP CNC Control, RS-232 Port, 4th Axis Prewire, Expanded
166K Multiple Part Program Storage, Rigid Tap, Thru-Spindle Coolant,
Graphics, Programmable Coolant Nozzle, Self Diagnostics, 21 Station
Automatic Tool Changer, Graphics, Rigid Tapping, Axis Error
Compensation, Full Enclosure, Coolant System.
CATALOGUE SPECIFICATIONS:

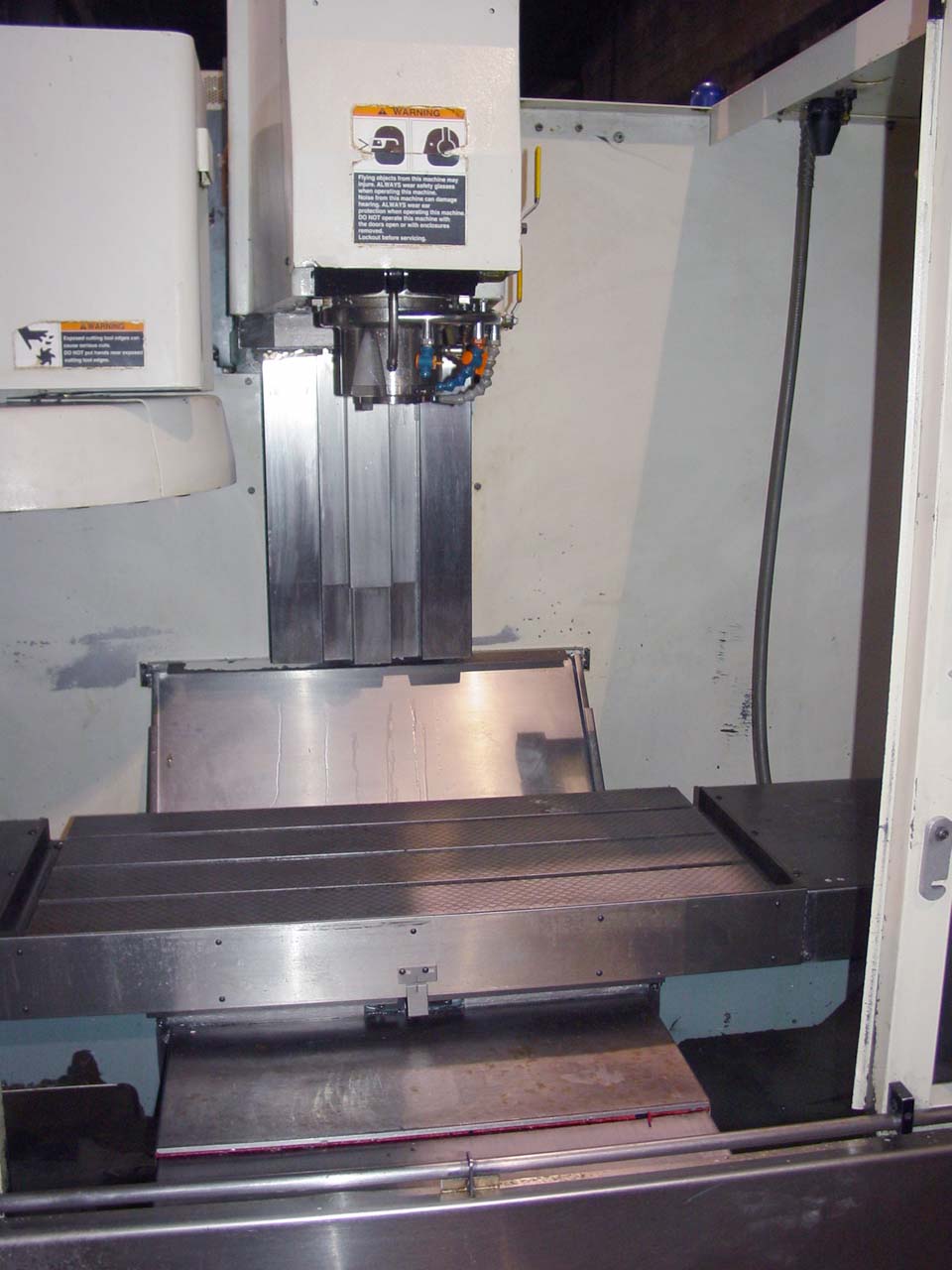

Table Working Surface................................. 38" x 16"
Table Load Capacity................................... 2763 LBS
Longitudinal Travel (X-Axis).......................... 30"
Cross Travel (Y-Axis)................................. 16"
Vertical Travel (Z-Axis).............................. 20"
Spindle Nose to Table................................. 4" - 24"
Rapid Traverse Rate (X & Y-Axes)...................... 700 IPM
Rapid Traverse Rate (Z-Axis).......................... 600 IPM
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 20 HP
Spindle Speeds Range.................................. 10- 10,000 RPM
Spindle Taper......................................... #40 Cat
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 87" x 106"
Approximate Machine Height............................ 95"
Approximate Machine Weight............................ 8,000 LBS
CONDITION: Appears to be in Excellent
Condition !
