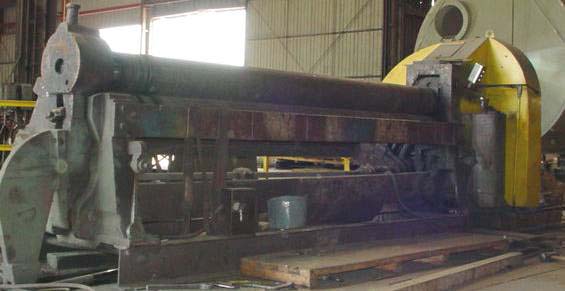

12' x 3/8" Bertsch Initial Pinch Plate Roll
Serial Number 6828
Equipped With:
Variable speed
Air drop end
Manual pinch
Power rear roll adjustment
Specifications
Capacity (boiler size): 3/8" Mild Steel
Capacity (pipe size): 5/16" Mild Steel
Roll length: 12'
Top roll diameter: 10 7/8"
Drive motor: 15 HP, 220/440, 3 Ph
Approx. weight: 28,000 lbs.
