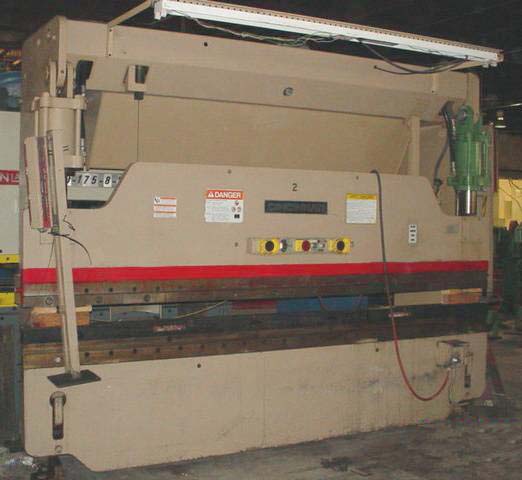

90 Cincinnati Hydraulic Press Brake
Year 1990
Serial Number 46922
Specifications
Capacity: 90 Ton (low or med speed) / 40 Ton (high speed)
Overall bed length: 12'
Between housings: 10'6"
Stroke, adjustable: 8"
Open height: 15"
Closed height: 7"
Throat depth: 7"
Main motor: 25 HP
Approx. Dimensions: 125" L-R x 45" F-B x 117" H
Approx. Weight: 18,000 lbs.
Equipped With
Full length die holder
Light Curtains
Front adjustable tilt control
Dual palm button or footswitch operation
Ram cycle controls
Adjustable tonnage control
Sectional ram clamps
Machine wired for 440 volt 3 phase
