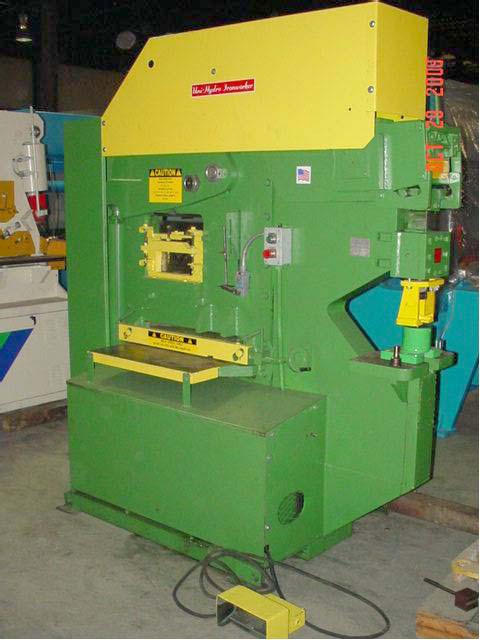

Uni-Hydro Hydraulic Ironworker
Model 95-24
Serial Number 3P-9549
Year 1990
Equipped with
Manual punch aligner
Machine is in good condition
Hydraulic power unit less than one year use
New pins in bushings through out the machine
Specifications
Tonnage: 95
Throat depth: 14"
Punch: 1-3/16" hole thru 1" - 2" hole thru 9/16"
Bar shear: 1" x 8", 3/4" x 12", 1/2" x 20", 1/4" x 24"
Angle shear (90 degree/slug type): 6" x 6" x 1/2"
Strokes/minute light material: 40
Strokes/minute at max capacity: 8
Motor: 7-1/2 HP, 3 Phase
Dimensions: 35" W x 77-1/2" L x 88-1/2" H
Approximate weight: 6,950 lbs
