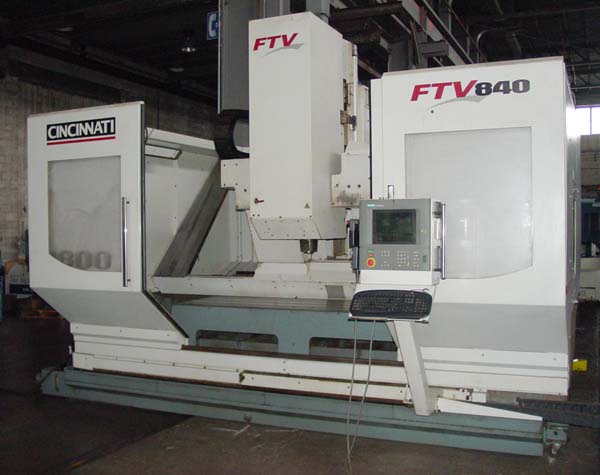

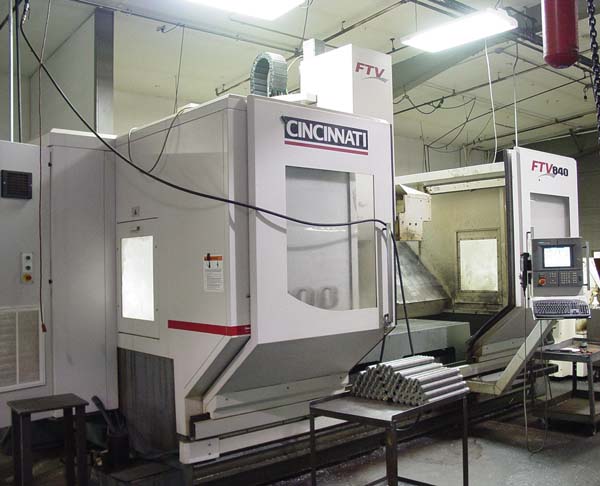

CINCINNATI FTV CNC VERTICAL MACHINING CENTER
           Model FTV840-1800, New 2003, S/N 7078A00-KH-00025
                                          Stock # K13095



EQUIPPED WITH:

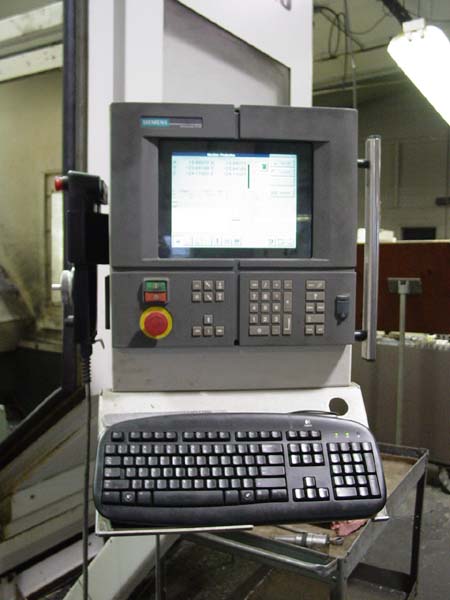

Acramatic 2100 CNC Control, RS-232 Port, Multiple Part Program Storage,
Self Diagnostics, 48 Station Automatic Tool Changer, Heavy Duty

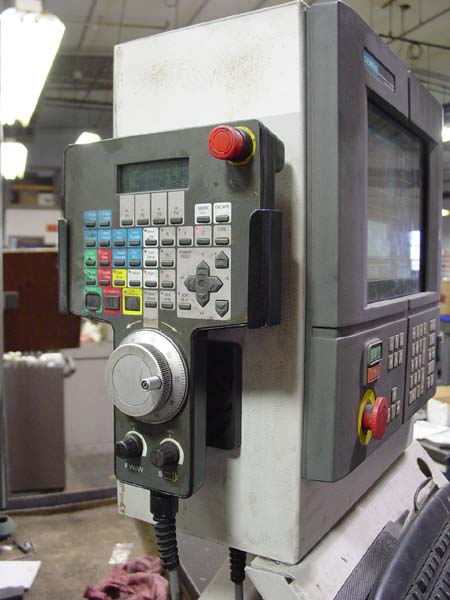

Traveling Column Designed with Fixed Table, Spindle, Manual Pulse
Generator, Axis Error Compensation, Cutter Compensation, Full Enclosure,
Chiller, Coolant System.



CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 95.6" x 32"
Table Load Capacity................................... 6000 lbs
Longitudinal Travel (X-Axis).......................... 72"
Cross Travel (Y-Axis)................................. 32"
Vertical Travel (Z-Axis).............................. 31.5"
Spindle Nose to Table................................. 4.7" - 36.2"
Tool Storage Capacity................................. 48
Spindle Horsepower.................................... 25 HP
Spindle Speeds Range.................................. 10-8000 RPM
Spindle Taper......................................... #40 Cat
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 188" x 149"
Approximate Machine Height............................ Max 153"
Approximate Machine Weight............................ 35,000 LBS



CONDITION: Appears to be in Excellent Condition !



PRICE F.O.B. Mid-Western Location...................$ 119,500.
