TBT TIEFBOHRTECHNIK CNC 4-SPINDLE GUN DRILL

Stock Number K13083

TBT TIEFBOHRTECHNIK FOR SALE CNC 4-SPINDLE GUN DRILL

TBT TIEFBOHRTECHNIK FOR SALE CNC 4-SPINDLE GUN DRILL

TBT TIEFBOHRTECHNIK FOR SALE CNC 4-SPINDLE GUN DRILL

TBT TIEFBOHRTECHNIK FOR SALE CNC 4-SPINDLE GUN DRILL

TBT TIEFBOHRTECHNIK FOR SALE CNC 4-SPINDLE GUN DRILL

TBT TIEFBOHRTECHNIK FOR SALE CNC 4-SPINDLE GUN DRILL

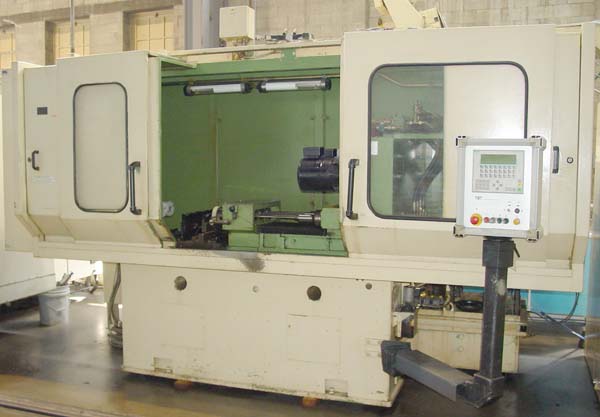

ACTUAL PHOTO
              TBT TIEFBOHRTECHNIK CNC 4-SPINDLE GUN DRILL
                 Model T30-4-250, New 2000, Stock# K13083

EQUIPPED WITH:
Siemens Simatic OP17 CNC Control,

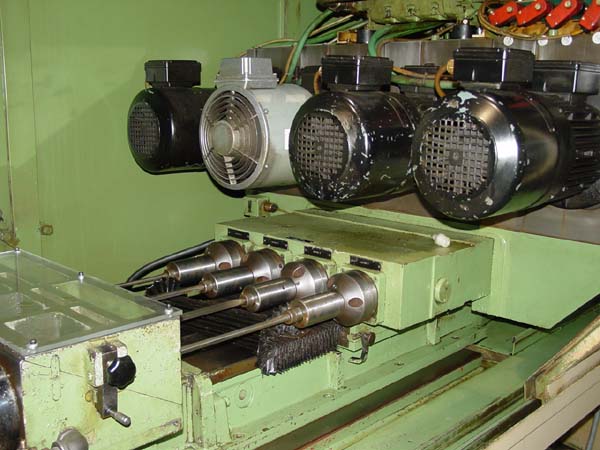

The CNC Control allows for Variable Feed Rate Drilling and  Drilling Spindle Power Monitoring. This gives you the capacity to Maximize Drill Performance and Reduce Cycle Times.  (4) Counter Rotating Work Holding Spindles/Tailstocks, CNC Controlled Axis Feed and Positioning, (4) 4HP Variable Speed Spindles, Spindle Load Meter, 16-1/2" x 39-1/2" T-Slotted

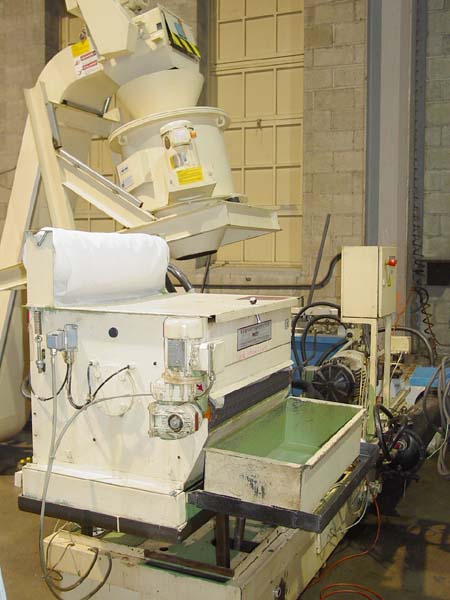

Table, 20 HP High Pressure Coolant System with Paper Filter and Cartridge
Filters, Heat Exchanger for Coolant System, Chip Conveyor with Mayfran
Chip Wringer.

CATALOGUE SPECIFICATIONS:

Max Drilling Diameter of Each Spindle............. 22mm  (.886")
Min Drilling Diameter of Each Spindle............. 3 mm  (.1181")
Max Boring Capacity In Steel 600N/mm ............. 35 mm (1.3779")
Working Surface of Table.......................... 16-1/2" x 39-12"
Carriage Stroke................................... 800 mm  (31.49")
Number of Drill Spindles.......................... 4
Distance Spindle Center to Spindle Center......... 120mm  (4.722")
Spindle Horsepower................................ 4 HP Each
Spindle Speeds Variable........................... 1120-6700 RPM
Tailstock Spindle Horsepower...................... 3 HP
Tailstock Stroke.................................. 60mm (2.362")
Electrics......................................... 460/3/60
Coolant System Horsepower......................... 20 HP
Coolant system Operating Pressure................. 1000 PSI
Coolant Flow...................................... 145 L / Min
Electrics......................................... 460/3/60
Approximate Machine Dimensions Set Up............. 170" x 126"
Approximate Machine Height........................ 96"
Approximate Machine Weight........................ 16,000 lbs

CONDITION: Appears to be in Excellent Condition !
