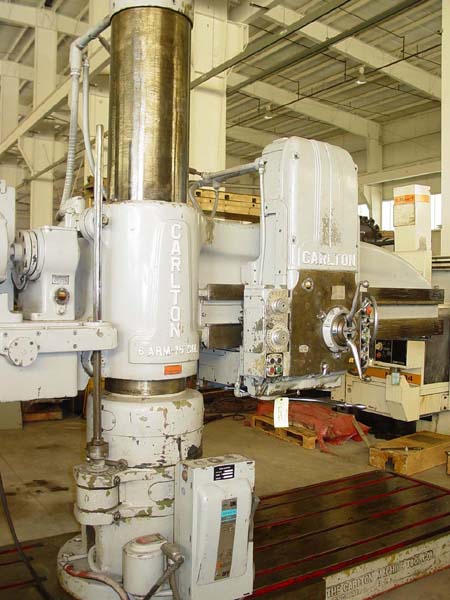

6'15" CARLTON RADIAL DRILL
New 1965, Serial No 4759, Model 3A,

EQUIPPED WITH:
Tapping/Threading Capabilities - Double Sided Base
Power Arm Elevation - Power Clamping
Power Rapid Traverse to Head

CATALOGUE SPECIFICATIONS:
Arm Length............................. 6'
Column Diameter........................ 15"
Horizontal Head Travel on Arm.......... 4'9"
Vertical Arm Travel on Column.......... 3'1-1/2"
Vertical Spindle Travel in Head........ 18"
Spindle-Radius, Minimum................ 26"
Spindle-Radius, Maximum................ 6'11"
Spindle-Nose to Base, Minimum.......... 10.5"
Spindle-Nose to Base, Maximum.......... 66"
Column-Face to Spindle, Minimum........ 15"
Column-Face to Spindle, Maximum........ 6'
Base Working Surface, W x L............ 42" x 72" Each Side
Spindle Nose Diameter.................. 3-3/16"
Spindle Taper.......................... #5 MT

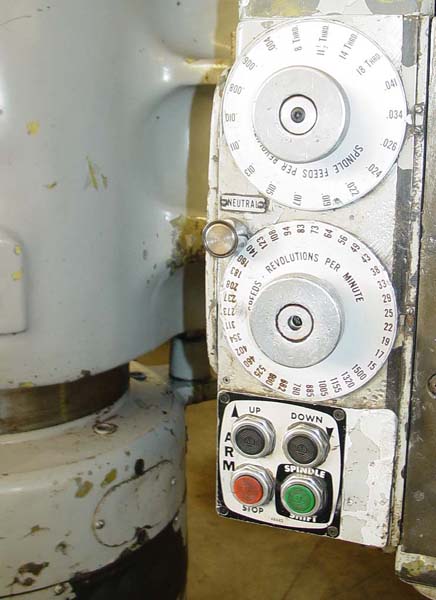

Spindle Speeds......................... 15 to 1500 RPM
(14) Spindle Feeds, Range.............. .004 to .125 IPR
(4) Tapping Leads, Range............... 8 to 18 TPI
Motor, Horsepower...................... 20 HP
Electrical System...................... 220-440/3/60
Extreme Height, Column Above Floor..... 9'11"
Extreme Height, Head & Arm Extended.... 10'7"
Weight, Approximately.................. 18250 LBS
