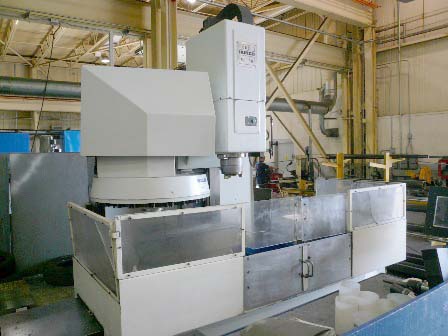

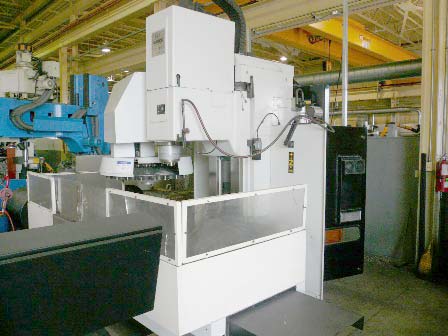

HURCO 3 AXIS 'Bed Type' CNC VERTICAL MACHINING CENTER
Model BMC 50/50 M, New 1995
EQUIPPED WITH:
Ultimax III CNC Control with Dual 12" CRT's, Hurco Ultimax
Conversational Programming, DXF File Compatible for Cad/Cam
Programming,
Background Edit, Dual RS-232 Ports, 3-1/2" Floppy Drive, Heavy Duty
Box
Way Construction, 20 Station Automatic Tool Changer,
Heavy Duty 50 Taper 20HP Geared Spindle, Work Light, Coolant System.
CATALOGUE SPECIFICATIONS:
Table Size........................................ 66.9" x 27.6"
Longitudinal Travel (X-Axis)...................... 52"
Cross Travel (Y-Axis)............................. 30"
Vertical Travel (Z-Axis).......................... 23.6"
Table Load Capacity............................... 3300 lbs
Maximum Clearance Table Top to Spindle Nose....... 28.3"
Feed Rates, All Axes.............................. 0.1 to 300 IPM
Rapid Traverse Rate, All Axes..................... 400 IPM
Tool Storage Capacity............................. 20
Spindle Horsepower................................ 20 HP
Spindle Speeds Range.............................. 30-4000 RPM
Spindle Taper..................................... No. 50 CAT
(V-Flange)
Electrics......................................... 240/460/3/60
Approximate Machine Dimensions.................... 111" x 97"
Approximate Machine Height (Head Up).............. 119"
Approximate Machine Weight........................ 17,600 LBS
CONDITION: Appears to be in Excellent Condition !
