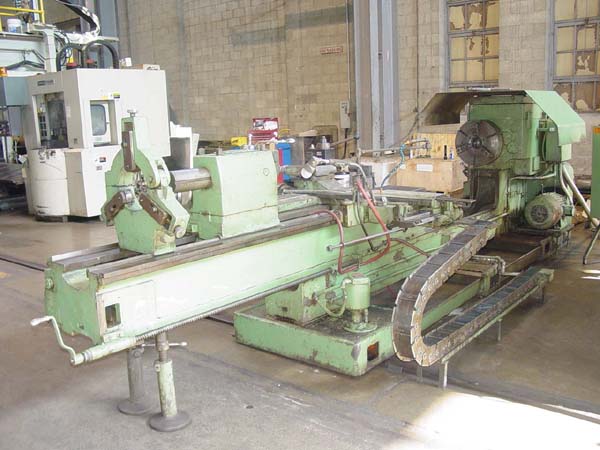

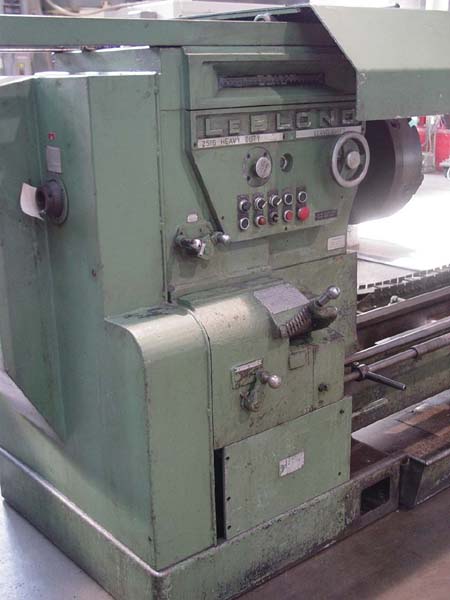

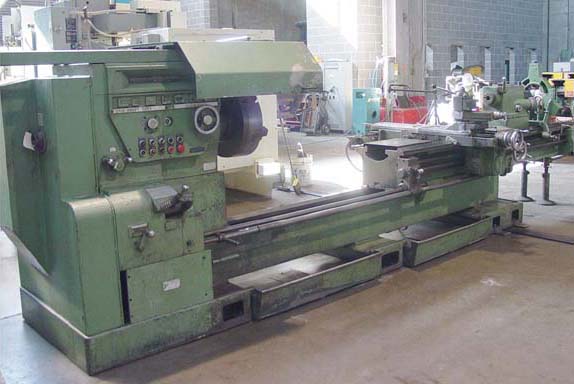

25"/49" X 96"/154" LEBLOND SLIDING BED GAP LATHE
Model 2516, New 1968, S/N 4NEL1680, Stock#
EQUIPPED WITH:

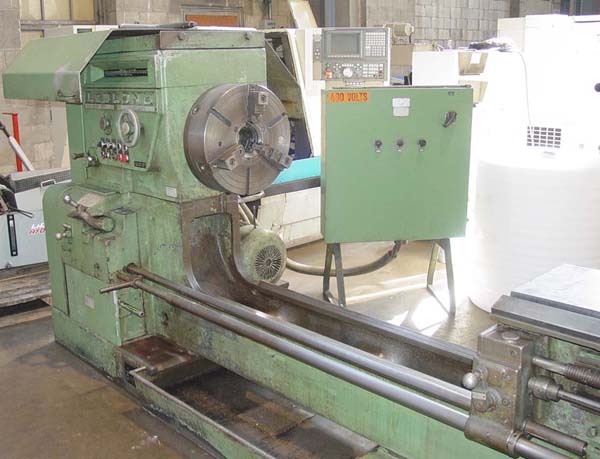

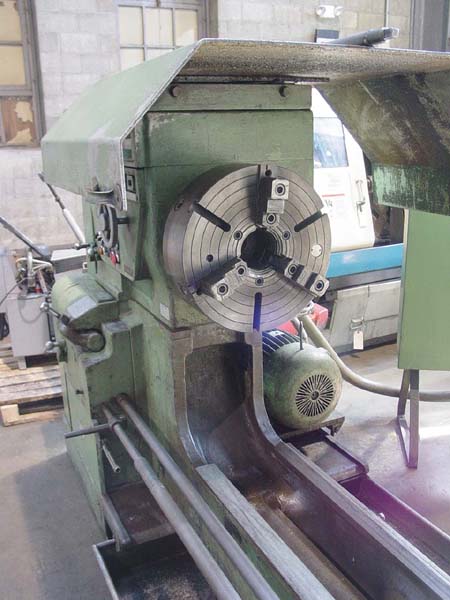

Hardened Replaceable Steel Bed Ways, Taper Attachment, Threading, 18"
3-Jaw Chuck,

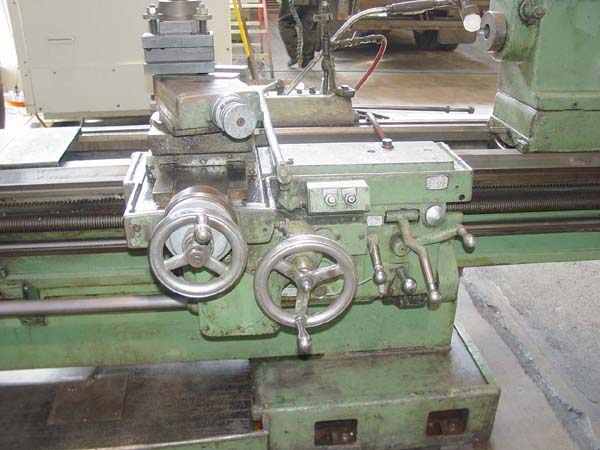

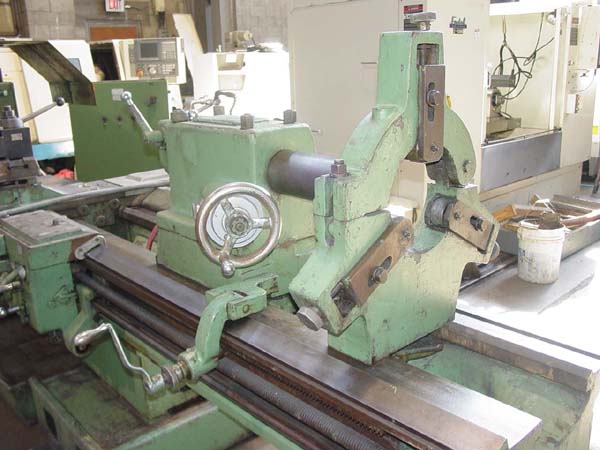

Steady Rest, Aloris Toolpost with (3) Drop-on Tool Holders, Sliding Bed
Design, Full Length Coolant/Chip Pans.
CATALOGUE SPECIFICATIONS:
Max. Swing Over Bed Ways Gap Closed.................. 25"
Max. Swing Through the Gap........................... 49"
Max. Swing Over the Cross Slide............................. 16"
Max. Distance Between Centers Bed Closed............. 96"
Max. Distance Between Centers Bed Ext................ 154"
Hole Thru Spindle.................................... 2-3/16"
Tailstock, Spindle Travel............................ 14"
Tailstock, Spindle Diameter.......................... 6"
(27) Spindle Speeds, Range........................... 12 to 1500 RPM
(93) Threading Leads, Range............................... 2 to 360 TPI
(109) Feeds Changes, Range........................... .0034 to .205 IPR
Electrics ........................................... 440/220/3/60
Approximate Machine Dimensions ...................... 185" x 80"
Approximate Machine Height .......................... 75"
Approximate Machine Weight...........................
CONDITION: Machine Appears to be in Excellent Condition!
