SUPERMAX HEAVY DUTY 3 AXIS 'Bed Type' CNC VERTICAL MACHINING CENTER

Stock Number K13042

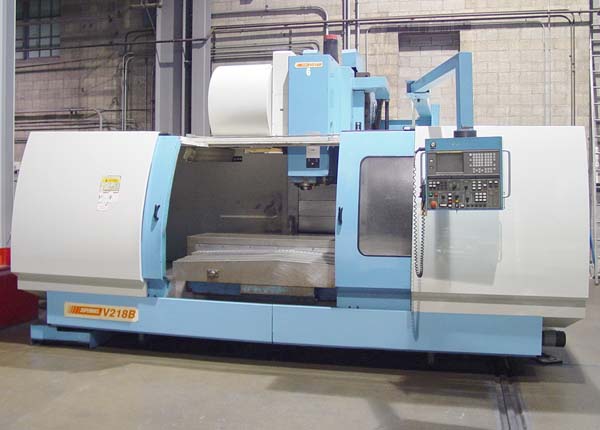

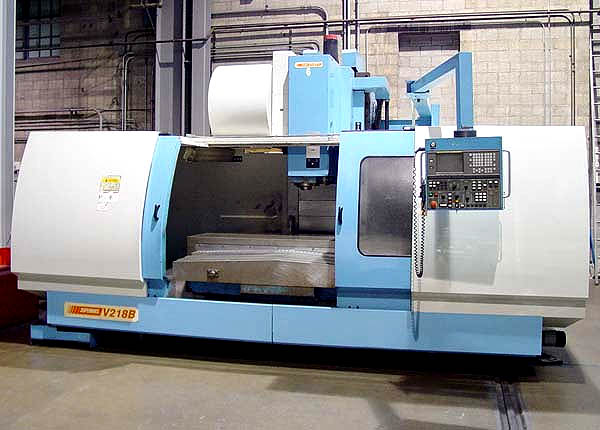

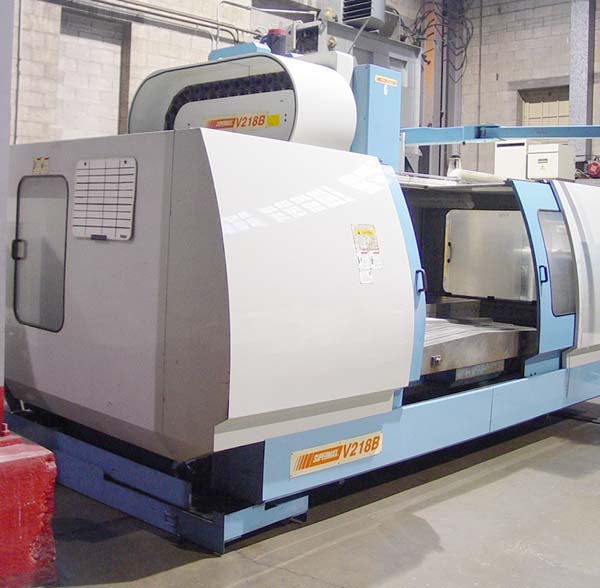

ACTUAL PHOTOS



  SUPERMAX HEAVY DUTY 3 AXIS 'Bed Type' CNC VERTICAL MACHINING CENTER
                   Model YCM-V218B, S/N 809009, New 1998
                              Stock# K13042


EQUIPPED WITH:

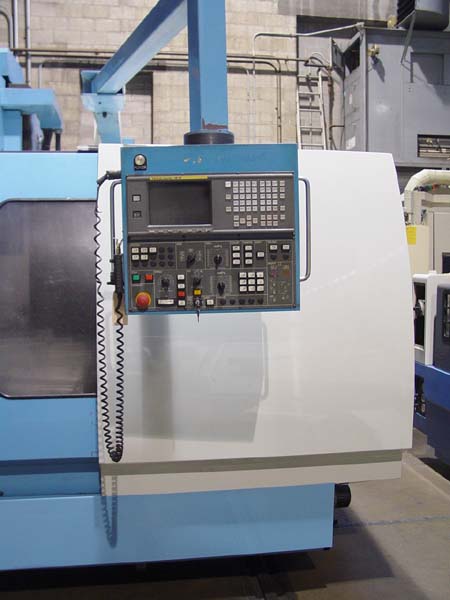

 Fanuc 18M CNC Control, Multiple Part Programm Storage, Tool
Offsets and Fixture Offsets, Backlash Comp RS-232 Port, Spindle Chiller,
Thru-Spindle Coolant, Heavy Duty Box Way Construction, 30 Station Double
Arm Automatic Tool Changer, Heavy Duty 50 Taper Geared Spindle, Work
Lights, Dual Chip Augers, Coolant System.



CATALOGUE SPECIFICATIONS:

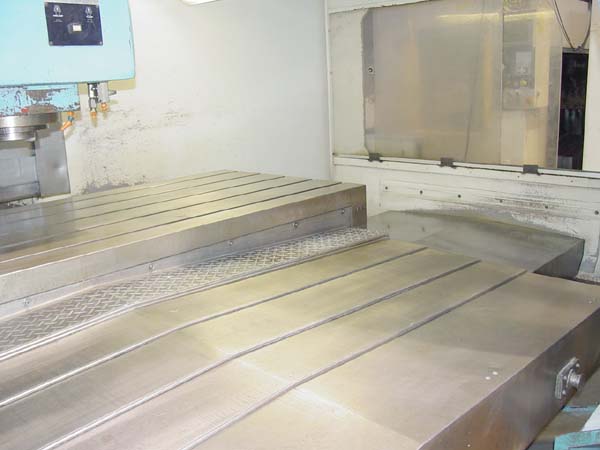

 Table Size........................................ 90" x 34"
Longitudinal Travel (X-Axis)...................... 83"
Cross Travel (Y-Axis)............................. 34"
Vertical Travel (Z-Axis).......................... 30"
Table Load Capacity............................... 6613 lbs
Maximum Clearance Table Top to Spindle Nose....... 37.87"
Feed Rates, All Axes.............................. 0.1 to 197 IPM
Rapid Traverse Rate, All Axes..................... 472 IPM
Tool Storage Capacity............................. 30
Spindle Horsepower................................ 20 HP
Spindle Speeds Range.............................. 30-4000 RPM
Spindle Taper..................................... 50 Taper
Electrics......................................... 240/460/3/60
Approximate Machine Dimensions.................... 205" x 182"
Approximate Machine Height (Head Up).............. 135"
Approximate Machine Weight........................ 49,000 LBS


CONDITION: Appears to be in Excellent Condition !
