10" x 20" CHEVALIER HORIZONTAL SPINDLE
RECIPROCATING SURFACE GRINDER
Model FSG1020AD, S/N E1851003, New 1996
Stock# K13035
EQUIPPED WITH:

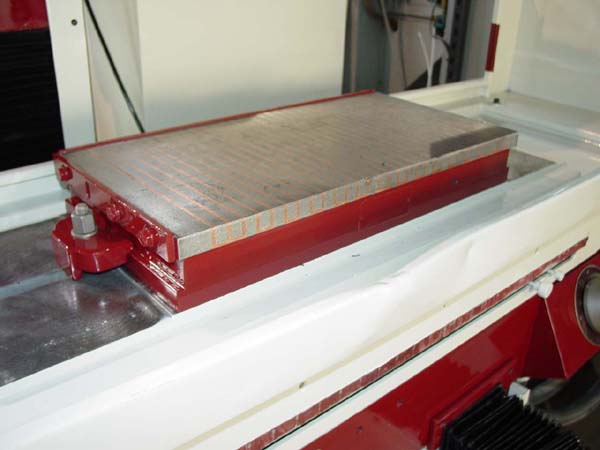

10" x 20" Electromagnetic Chuck, Automatic
Incremental Power Downfeed,

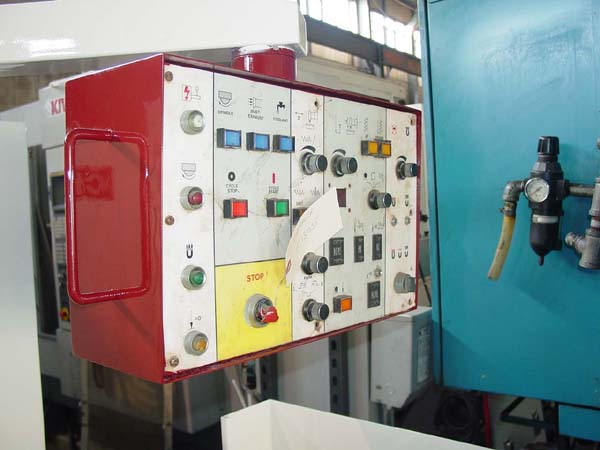

Automatic Fine & Rough Grinding Cycles, Automatic Downfeed Control to
Wheelhead Slide, Automatic Recip & Crossfeed.
CATALOGUE SPECIFICATIONS:
Max Table Working Surface............................ 10" x 20"
Magnetic Chuck Working Surface....................... 10" x 20"
Longitudinal Travel (X-Axis)......................... 22-7/8"
Cross Travel (Z-Axis)................................ 11"
Vertical Travel (Y-Axis)............................. 15"
Max Height Spindle Center to Table................... 21"
Table Longitudinal Feed Range (Variable)............. 16 - 82 FPM
Grinding Wheel Diameter.............................. 12"
Grinding Wheel Width................................. 1-1/4"
Grinding Wheel Hole Diameter......................... 3"
Grinding Wheel Motor................................. 3 HP
Electrics............................................ 230/460/3/60
Approximate Machine Dimensions....................... 65" x 88"
Approximate Machine Height........................... 82"
Approximate Machine Weight........................... 4,000 LBS
CONDITION: Machine has been cleaned, Painted and Cycled. Appears to be
in Excellent Condition.
