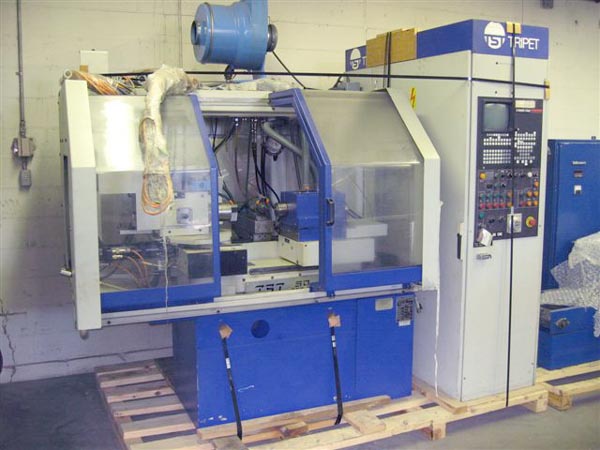

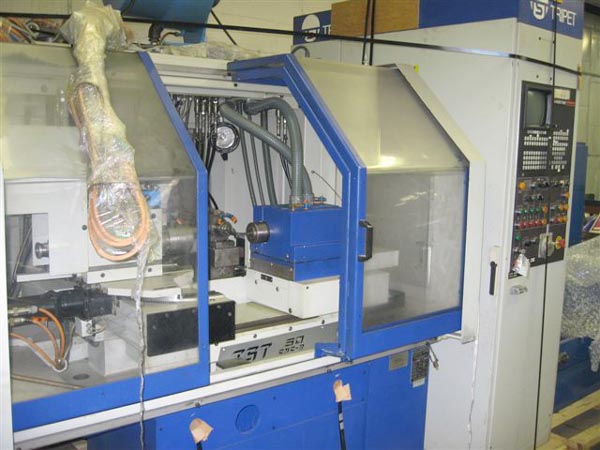

TRIPET CNC INTERNAL GRINDER
MODEL: TST 50 CNC S/N: 5137/09/079 NEW: 1995
NUM 760 CNC control with menu driven conversational programming.

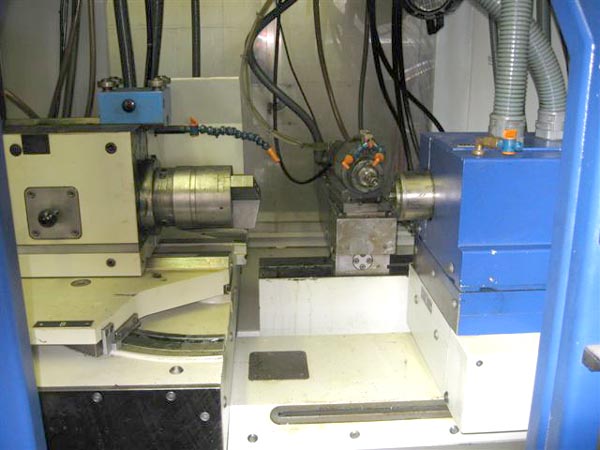

2 spindle design (turret)
Both spindles are made by FISCHER
Both spindles are model number MFNS-8120/1, S/N are 111327 &
111328
120k oil mist cooled electronically controlled spindles
350 volt/2000 Hz/2 pole/1.9 DVA/1.2 KW/3 AMP
“Volkmann” adjustable frequency ac electronic drive model
#71417AA s/n 369019
“Norgren” oil mist cooling system for spindles
CNC “B” Axis (workhead)
4” air –powered chuck
“Flowcon” coolant system w/paper filtration
Machine is presently wired for 3/60/480 volt electrics.
Spindles #1 120000 RPM
#2 120000 RPM
