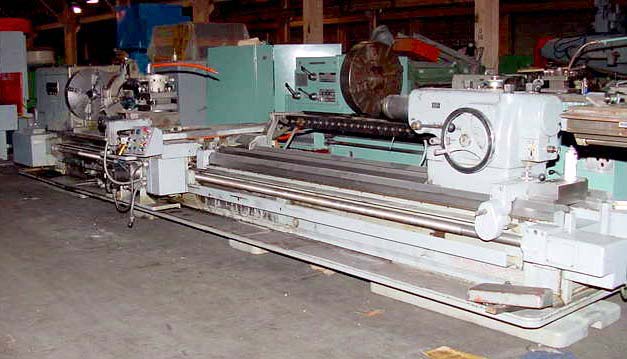

AMERICAN FLAT BED HEAVY DUTY CNC LATHE
MODEL: 3220W, S/N: 78788
NEW MDSI CNC CONTROL INSTALLED 2002
EQUIPPED WITH:

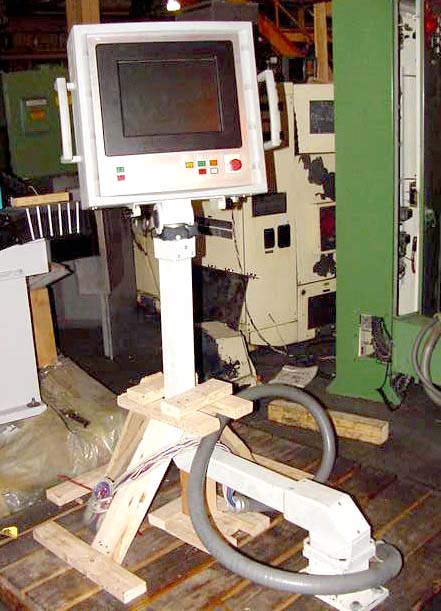

* RETROFITTED 2002 WITH MDSI CNC CONTROL
* 24" 4-JAW CHUCK
* 4 WAY POWER TOOL POST

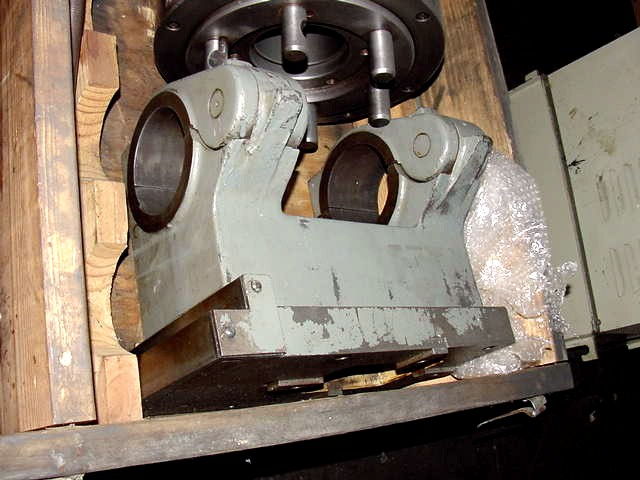

* (2) HEAVY DUTY STEADY RESTS

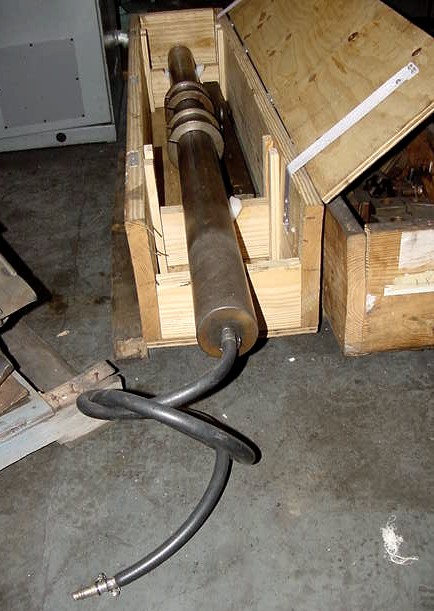

* CARRIAGE MOUNT BORING BAR ATTACHMENT WITH 5' CAPACITY
* BALL SCREWS FOR LONGITUDINAL & CROSS TRAVEL OF CARRIAGE
* 40 HORSE POWER SPINDLE MOTOR
CATALOG SPECIFICATIONS:
SWING OVER BED ......................... 36 1/2"
SWING OVER CARRIAGE WINGS .............. 33 1/2"
SWING OVER CROSS SLIDE ................. 22"
BED WIDTH .............................. 25"
HOLE THRU SPINDLE ...................... 3"
SPINDLE NOSE ........................... D1-11" CAMLOCK
DISTANCE BETWEEN CENTERS ............... 196"
SPINDLE SPEEDS ......................... 8 TO 1,200 RPM
TAILSTOCK SPINDLE DIAMETER ............. 6"
TAILSTOCK SPINDLE TRAVEL ............... 15"
APPROXIMATE MACHINE WEIGHT ............. 40,500 LBS
