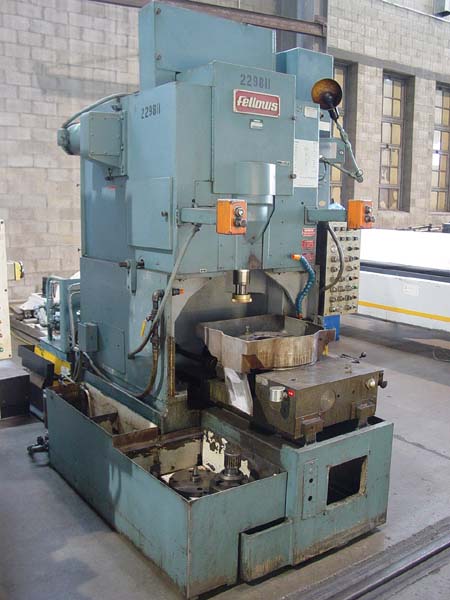

10-2 FELLOWS GEAR SHAPER
                      Model 10-2, S/N 35502, New 1978
                               Stock# K13003



This Machine has the Capacity for Cutting Internal or External Spur
or Helical Gears and many Non-Involute Shapes, Built-In Crowning
Ability, Taper Ability, Variable Speed Infeed for Better Finish and
Extended Cutter Tool Life, Cut and Infeed Rates are Set by
Potentiometers.



EQUIPPED WITH: Infinitely Variable Depth Control, 3" Riser, Auto Cutter
Positioning, Mechanical Spur Guide, Hydraulic Work Clamping, Coolant
System, Automatic Lube System.



CATALOGUE SPECIFICATIONS:



Maximum Pitch Diameter, External...................... 10"
Maximum Pitch Diameter, Internal...................... 10"
Maximum Face Width Internal & External................ 2"
Maximum Diameter Swing................................ 19"
Maximum Diametral Pitch, Spur......................... 4
Maximum Diametral Pitch, Helical...................... 5
Maximum Helix Angle with Standard Guides.............. 45 Degrees
Speed................................................. 350-659 SPM
Horsepower............................................ 5 HP
Approximate Machine Dimensions........................ 97" x 58"
Approximate Machine Height............................ 119"
Approximate Machine Weight............................ 11,000 Lbs



CONDITION: Appears to be in Very Good Condition!
