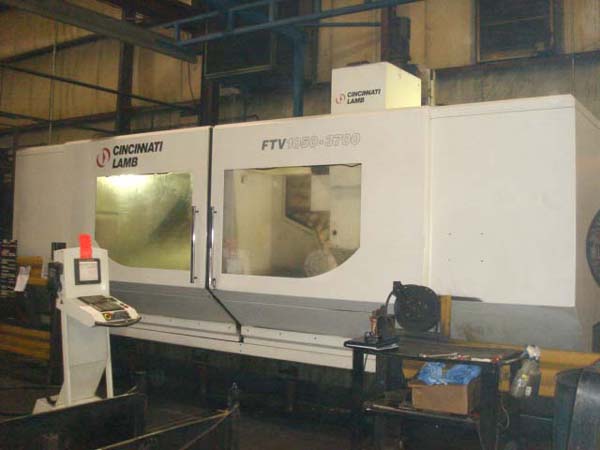

CINCINNATI LAMB FTV1050-3700 VERTICAL MACHINING CENTER
New 2005, Stock# K12988
EQUIPPED WITH:
Fanuc 18i CNC Control, Hand Held Pendent, Ethernet and Data Server,
Additional M-Functions, Rigid Tapping, 36 Station Automatic Tool
Changer, Heavy Duty Cat-50 Spindle, Renishaw MP700 Part Probe, Dual
Tool
Probes, Partition for Dual Load and Work Zones, Auto Coolant, Full
Coolant Enclosure, Spindle Load Meter, Chip Conveyor and Chip
Blaster
Coolant System.
CATALOGUE SPECIFICATIONS:
X Travel (Longitudinal)............................... 146"
Y Travel (Cross)...................................... 40"
Z Travel (Vertical)................................... 31"
Table Working Surface................................. 40"x 169"
Table Work Load Capacity.............................. 22,000 LBS
Spindle Horsepower.................................... 50 HP
Spindle Speeds........................................ 30-5000 RPM
Spindle Taper......................................... #50 CAT
Rapid Traverse ,...................................... 1500 IPM
Feedrates............................................. 787 IPM
Tool Storage Capacity................................. 36
Approximate Dimensions................................ 13'1" x 22'6"
Approximate Height.................................... 12'6"
Approximate Weight.................................... 42,000 LBS
CONDITION: This Machine Appears to be in Excellent Condition !
