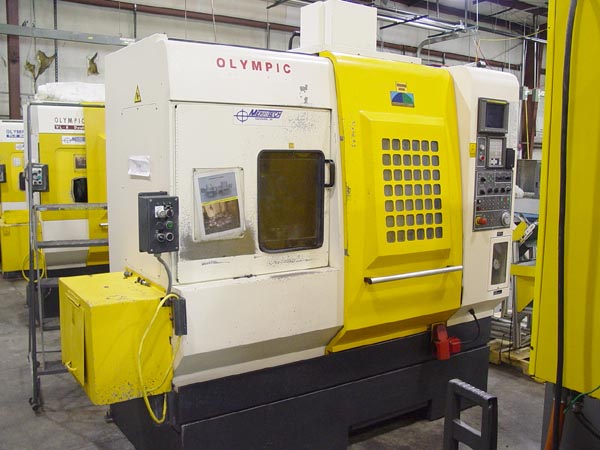

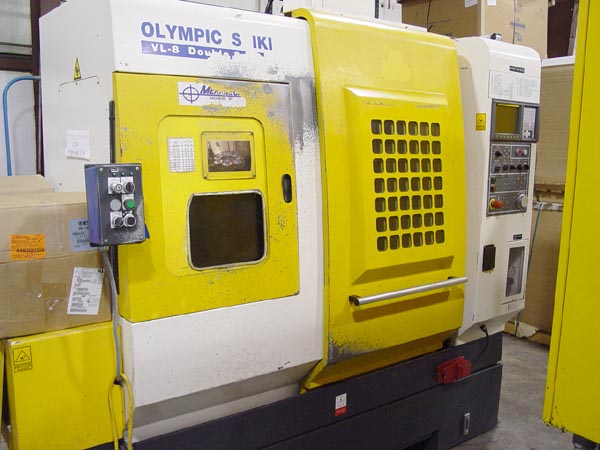

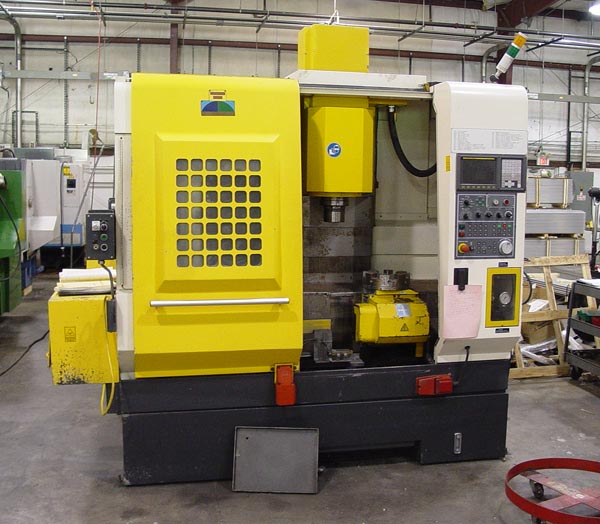

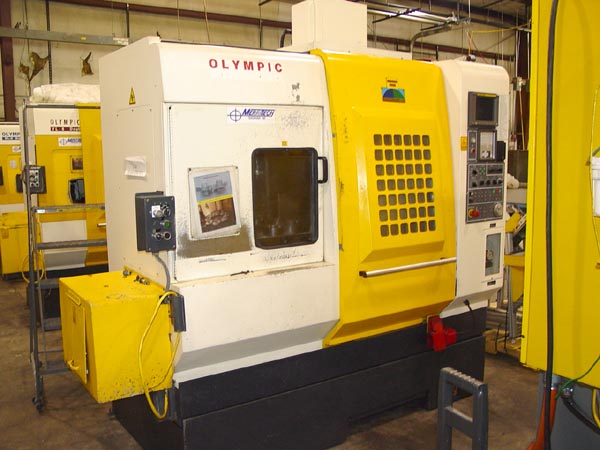

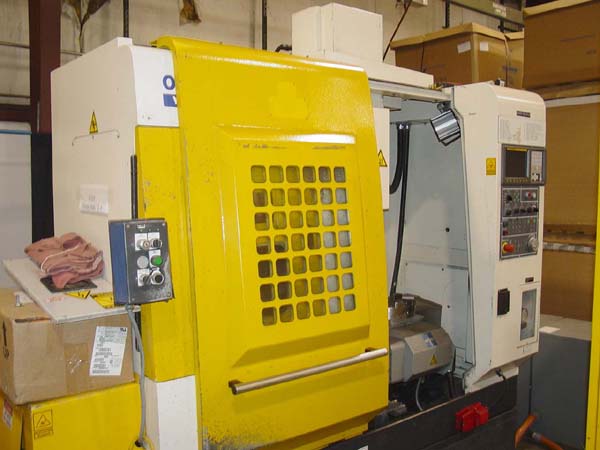

OLYMPIC SEIKI INVERTED VERTICAL SPINDLE CNC TURNING CENTER
Model VL-8, New 2003, Stock# K12973, 3
Available
EQUIPPED WITH:

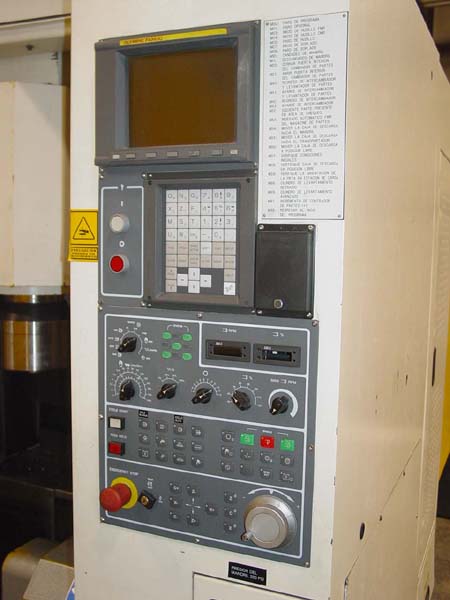

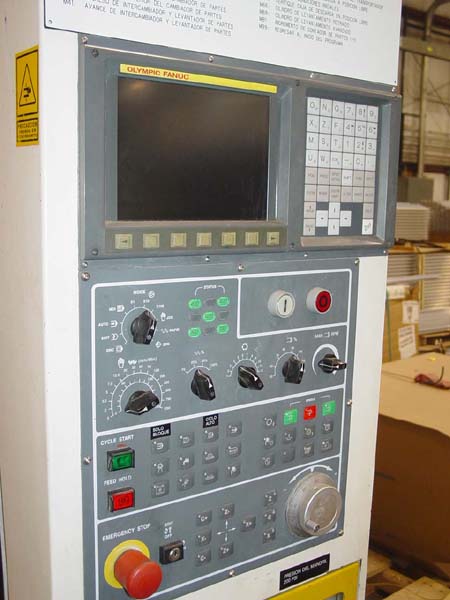

Olympic Fanuc 0i CNC Control, RS-232 Port, Tool Tip Graphics, A2-6

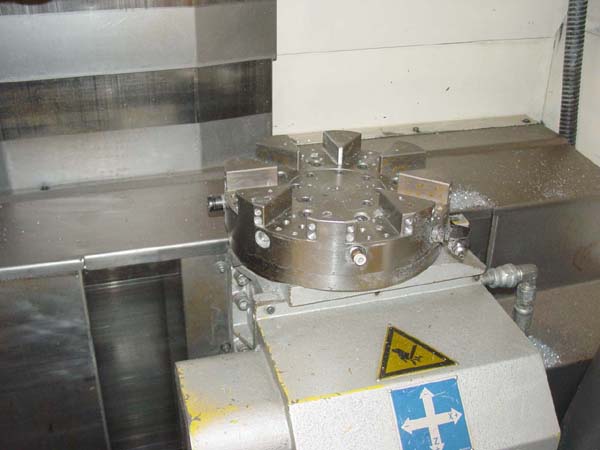

Spindle Nose, Power Actuator for Chuck or Fixture, 8 Position Tool
Turret, 8 Position Work Changer, Chip and Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing ............................................... 13.8"
Max Cutting Diameter..................................... 9.8"
Max Distance Spindle Nose to Turret...................... 12.6"
Cross Travel (X-Axis).................................... 5.9"
Longitudinal Travel (Z-Axis)............................. 12.6"
Rapid Traverse Rate X-Axis .............................. 1417 IPM
Rapid Traverse Rate Z-Axis............................... 2835 IPM
Tool Positions........................................... 8 Total
Spindle Speed Range ..................................... 10-4500
RPM
Spindle Horsepower....................................... 15 HP Cont
Approximate Machine Dimensions........................... 83" x 96"
Approximate Machine Height............................... 95"
Approximate Machine Weight............................... 8,800 LBS
CONDITION: Machine Appears to be in Excellent Condition
