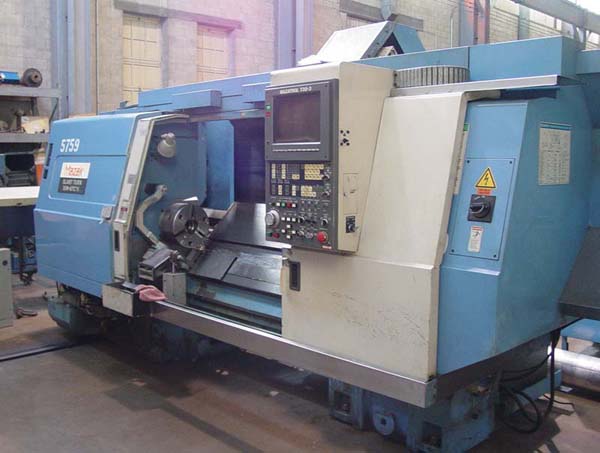

MAZAK SLANT TURN 35N ATC MILL CENTER
Model UNIVERSAL 1500, New 1990, Stock #K12971
MACHINE DESCRIPTION:
The Mazak Slant Turn 35 ATC Mill Center is a Turning Center which is
Capable of Multiple Machining Processes, Such as Milling, Drilling,
and
Tapping, as well as Turning. The Rotary Tool Capabilities and the
Spindle Indexing make it Possible to Complete Turning and
Secondary Machining of a Mass Variety of Workpiece Configurations.
EQUIPPED WITH:

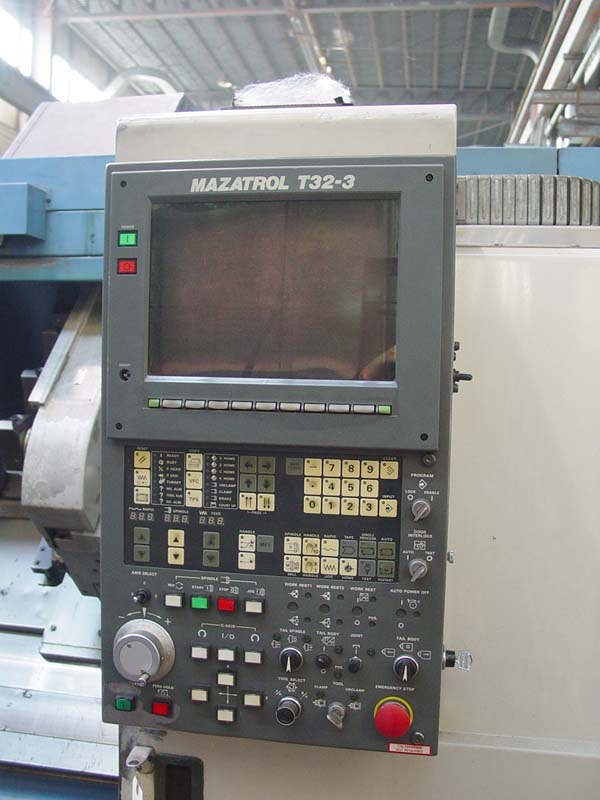

Mazak Mazatrol T-32-3 3-Axis Simultaneous CNC Control w/CRT , Micro
Disk
Storage Option, 360,000 Spindle Positions, Live Tooling for

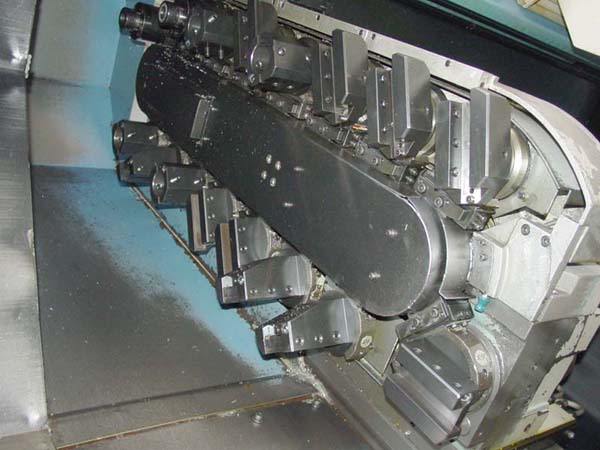

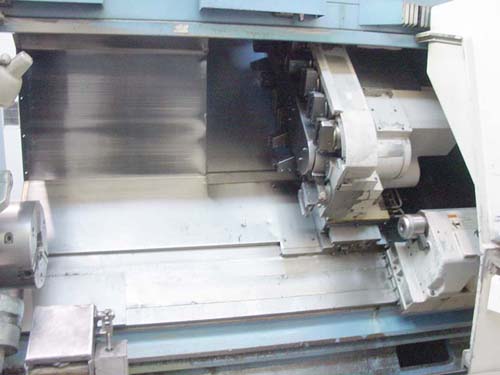

Milling, Drilling and Tapping, 12" 3-Jaw Chuck, 16 Station Tool
Magazine, Linear and Circular Interpolation, Built-in Live Center
Programmable Tailstock, Parts Catcher, Tool Eye, Chip Conveyor,
Splash
Enclosure & Coolant System, LNS 12' Hydrobar barfeeder.
CATALOGUE SPECIFICATIONS:
Max Swing Over the Slant Bed............................ 18.8"
Max Tailstock Position.................................. 60.6"
Cross Travel (X-Axis)................................... 13.2"
Max Machinable Center Distance (Z-Axis)................. 60.5"
Tool Positions.......................................... 16 Total
Rotary Tool Spindle..................................... 5 HP
Max Number of Driven Tools.............................. 16
Spindle Speed Range..................................... 6-2200 RPM
Spindle Nose............................................ A2-8
Hole Thru Spindle....................................... 3.15
Feed Range.............................................. .1-196 IPM
Rapid Feed Rate......................................... 393 IPM
Spindle Horsepower...................................... 30 HP
Electrics............................................... 440/3/60
Approximate Machine Dimensions..........................
179"x74"x96"H
Approximate Machine Weight.............................. 12,700 LBS
CONDITION: Machine Appears to be in Very Good Condition
