Toshiba BMC-100E CNC
Horizontal Machining Center
Age 1996
X-Axis Travel ......................... 78.7"
Y-Axis Travel ......................... 49.2"
Z-Axis Travel ......................... 47.2"
Number of Pallets ..................... 2
Pallet Work Weight Capacity ........... 5500 Lbs.
Pallet Size ........................... 39.4" x 39.4"
Pallet Indexing ...................... .001 Degree
Spindle Taper ......................... CAT 50
Spindle Speeds ........................ 15-5000 RPM
Spindle Drive Motor ................... 30 HP
Machine Dimensions (LxWxH) ............ 296"x213"x151"
Approximate Weight .................... 49,500 Lbs.
EQUIPPED WITH:

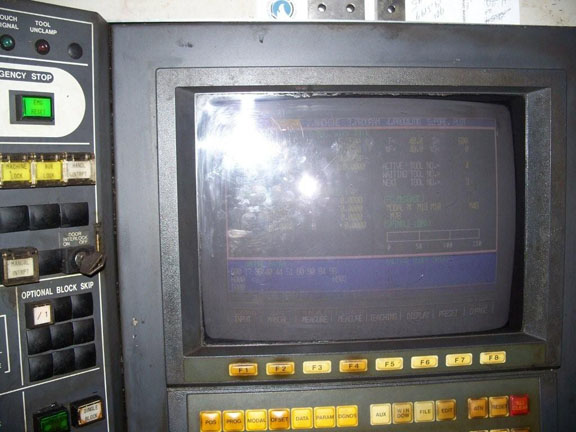

Tosnuc 800 CNC Control w/ RS-232 Port
120-Station Automatic Tool Changer
Dual 39.4" x 39.4" Pallets with Auto Pallet Changer
Full B-Axis Contouring
Spindle Chiller
Chip Conveyor
Full Splash Enclosures
