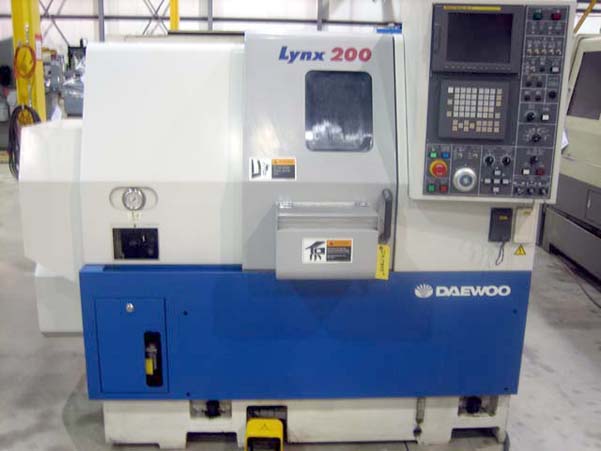

DAEWOO LYNX 200A CNC TURNING CENTER, 1.77"
BAR CAPACITY, WITH FANUC 21iT CNC CONTROL
S/N L20011865 NEW 2000
SPECIFICATIONS:
CAPACITY SWING OVER BED: 18.11"
SWING OVER SADDLE: 13.7"
MAXIMUM TURNING DIAMETER: 11.0"
(6.5 RECOMMENDED)
MAXIMUM TURNING LENGTH: 11.81"
BAR CAPACITY: 1.77"
TRAVEL
X-AXIS TRAVEL: 6.3" (5.51 + .79)
Z-AXIS TRAVEL: 13"
SPINDLE
CHUCK DIAMETER: 6.5"
SPINDLE SPEED: 5000 RPM
SPINDLE NOSE:
A2 #5 ASA
SPINDLE BORE DIAMETER: 2.09"
SPINDLE BEARING DIAMETER (FRONT): 3.54"
TURRET
NUMBER OF TOOL STATIONS: 12
OD TOOL SIZE: 1.0" x 1.0"
BORING BAR DIAMETER: 1.5"
INDEXING TIME (1ST SWIVEL): .12 SEC
FEEDRATE
RAPID TRAVERSE (X/Z): 790/945 IPM
CUTTING FEED (X, Z):
19.7"/REV
MOTOR SPINDLE (30 MIN): 10 HP
FEED MOTOR (X/Z): 1.9/1.9 HP
COOLANT PUMP: 1.2 HP
ELECTRICAL POWER SUPPLY: 19 KVA
ELECTRICS: 220 VOLTS, 3 PH, 60 CYC
MACHINE SIZE
HEIGHT: 61"
FLOOR SPACE: 64" X 63"
WEIGHT, APPROX.: 7,030 LBS
EQUIPPED WITH:
FANUC 21iT CNC CONTROL
ROYAL COLLET CHUCK
PARTS CATCHER
TOOL PROBE
