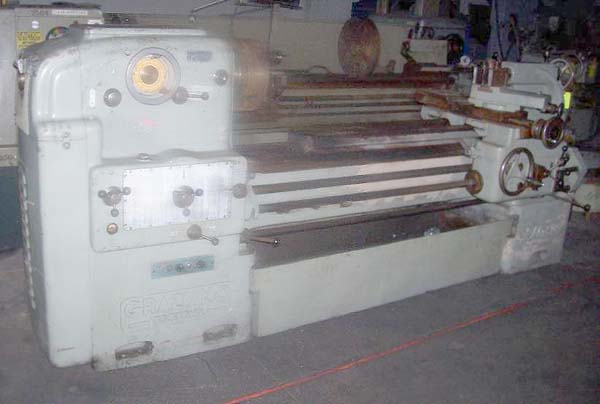

13" X 60" GRAZIANO GEARED HEAD GAP BED ENGINE LATHE
New 1960's, S/N Unknown
Stock # K12947
EQUIPPED WITH:
Threading, 28" Long Gap with 28" Swing in Gap, 12" 3-Jaw Chuck,
Heavy Duty Geared Headstock with (12) Spindle Speeds, Pull Out
Chip Pan.
CATALOGUE SPECIFICATIONS:
Max. Swing Over Bed Ways............................. 21"
Max. Swing Over Gap.................................. 38"
Max. Swing Over Cross Slide.......................... 13"
Chuck Face to End of Gap............................. 28"
Max. Distance Between Centers........................ 60"
Hole Thru Spindle.................................... 2-1/4"
(12) Spindle Speeds, Range........................... 28 to 1300 RPM
Carriage Longitudinal Feeds.......................... .001" to.285 IPR
Inch Thread Changes, Range........................... 1 to 44 TPI
Main Motor, Horsepower/RPM .......................... 7.5 HP
Electrics ........................................... 230/480/3/60
Approximate Machine Dimensions ...................... 120" x 45"
Approximate Machine Height .......................... 55"
Approximate Machine Weight........................... 6,000 LBS
CONDITION: Machine Appears to be in Very Good Condition !
PRICE: F.O.B. West Coast Location.................... $ 4,950.
