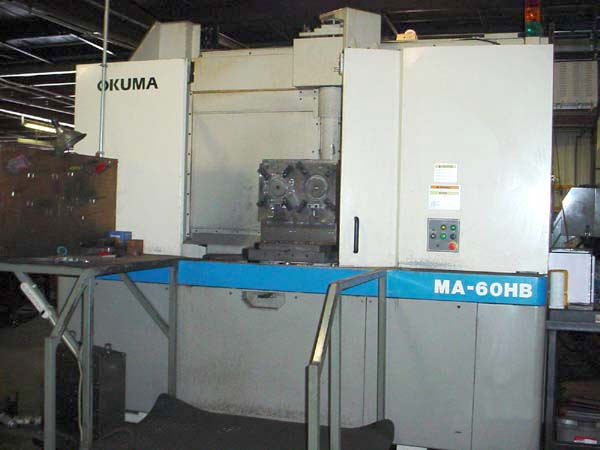

OKUMA MA-60HB CNC HORIZONTAL MACHINING CENTER
Model MA-60HB, New 2002, Stock # K12929
EQUIPPED WITH:

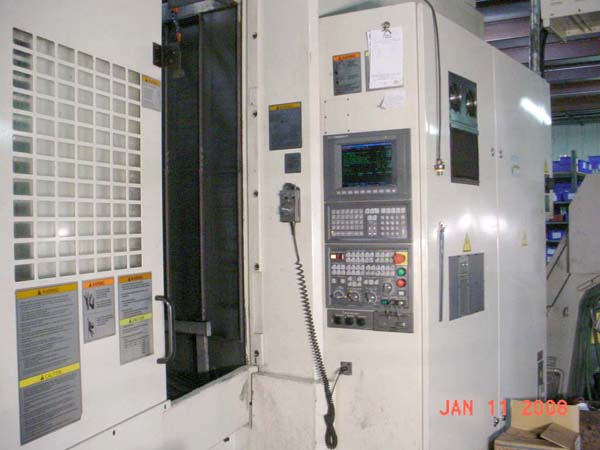

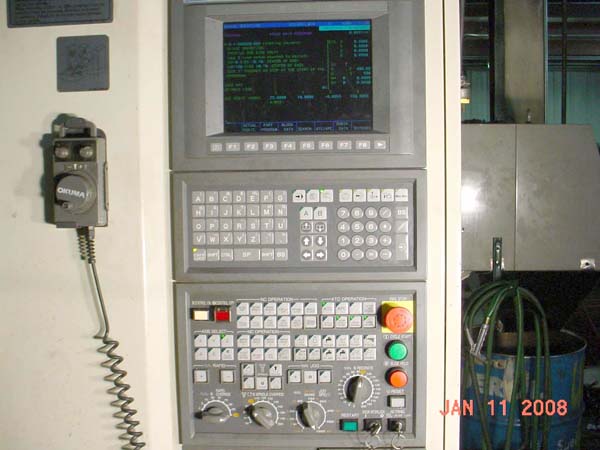

Okuma OSP U100M CNC Control, High Nurbs Type B Programming, DNC
DT-100,
Tool Life Management, Cycle Time Reduction, Synchronized Tapping,
Helical Cutting, (2) 24.8" x 24.8" Pallets, Full Contouring 4th Axis
Pallet Rotation, 60 Station Automatic Tool Changer, Full Coolant
Enclosure, 12000 RPM Spindle, Tool Breakage Detection, High Pressure
Thru-the-Spindle Coolant, Chip Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 39.37"
Vertical Travel (Y-Axis) ............................... 31.5"
Spindle Travel (Z-Axis) ................................ 31.89"
Pallet Dimensions ...................................... 24.8"x
24.8"
Number of Pallets ...................................... 2
Number of Index Positions............................... 360,000
Feed Rate, All Axes .................................... .1-1572 IPM
Rapid Traverse, All Axes ............................... 1572 IPM
Spindle Horsepower...................................... 50/34 HP
Spindle Speed Range (2 Range)........................... 20-12,000
RPM
Spindle Taper .......................................... #50
Taper
Number of Tool Stations ................................ 60
Electrics .............................................. 460/3/60
Approximate Floorspace Dimensions ...................... 210" x 301"
Approximate Machine Height ............................. 108"
Approximate Machine Weight ............................. 32,000 LBS
CONDITION: Appears to be in Excellent Condition! From A Prestigious
US Company! Only 4000 Hours Since New !
