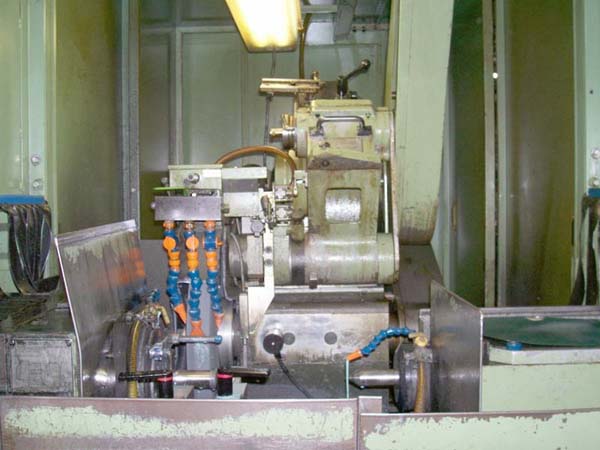

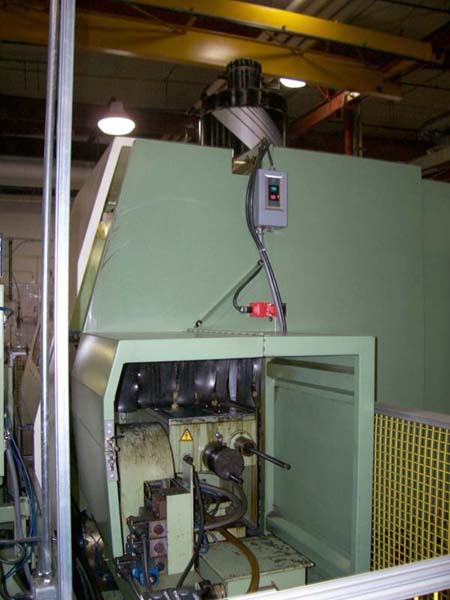

OKUMA CNC 2-AXIS ID/OD
CYLINDRICAL GRINDER
Model GP44Nx1000I, New 1991, Stock #k12918
EQUIPPED WITH:
Okuma OSP-5020G CNC Control w/CRT, Color Graphics, OPS-G
Programming,
Multiple Dress Cycles, Inch/Metric Switchable, User Task 2, RS-232
Port, Multiple Part Program Storage, Tool Rose Radius Comp, Swing
Down
ID Spindle, Marposs Gauging System, Flag Gauge, Hydraulic Foot
Stock,
High Accuracy Servos, Profile Dressing w/Automatic Compensation,
Power
Chuck, Hydraulic Tailstock, Automatic Lubrication System, Full
Enclosure, Coolant System.
CATALOGUE SPECIFICATIONS:
Swing Over Table, Maximum............................ 16.93"
Maxim Grinding Diameter.............................. 15.75"
Grinding Length, Maximum (Work Length)............... 39.37"
Grinding Wheel, Maximum Diameter .................... 18"
Grinding Wheel, Maximum Width........................ 2.95"
Grinding Wheel, Hole Diameter........................ 5"
Table Rapid Traverse Rate............................ 630 IPM
Table Feed Rates..................................... .000047-236.22
IPM
Wheelhead Infeed Rapid Traverse Rate................. 630 IPM
Wheelhead Infeed Feed Rates.......................... .000047-236.22
IPM
Wheelhead Horsepower................................. 7.5 HP
Workhead Speed....................................... 25 - 600 RPM
Electrical System.................................... 220/440/3/60
Approximate Machine Dimensions....................... 99.6" x 123"
Approximate Machine Height........................... 79"
Approximate Machine Weight........................... 17,600 LBS
CONDITION: From a Large Aerospace Company ! Appears to in be
Excellent
Condition!
